Part no.: 01 0010 001

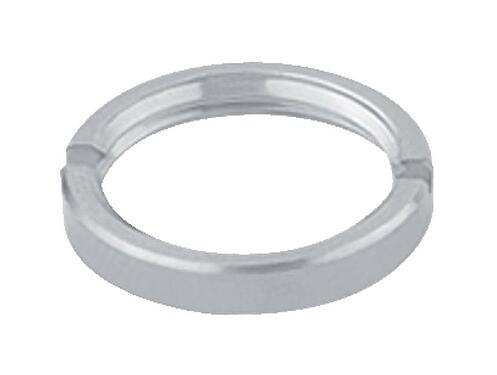

M16 IP67 - Ring nut for mounting thread, with knurled nut; series 423/425/723

series 423/425/723, Accessories

Part no.	01 0010 001

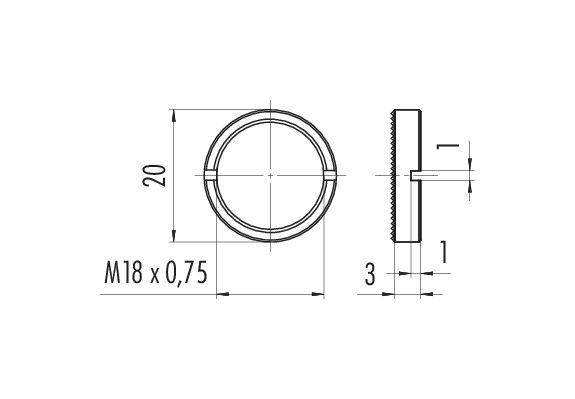

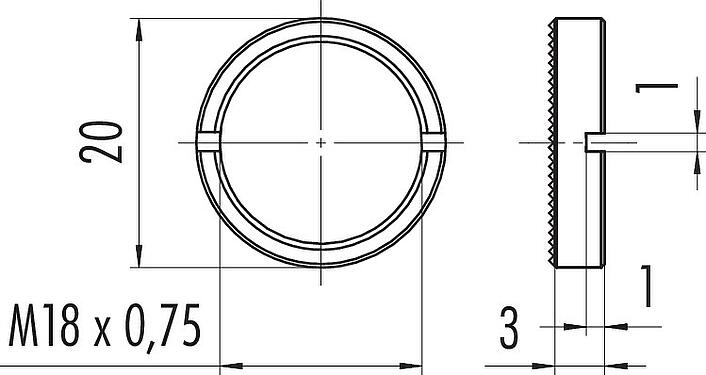

Thread	M18x0.75
Additional information	alternatively CuZn39 Pb3 Rmin. 400 or CuZn38 Pb2 Rmin. 410
Weight (g)	1.46
Customs tariff number	85389099
Country of Origin	DE

eCl@ss 11.1	27-44-01-92

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
