M12-A/B/D/K/K/L/S/T/US/X - Ring nut for mounting thread M12 x 1, diameter 18 mm; Series 713/715/763/766/813/814/815/825/866/876

Part no.: 01 5325 001

M12-A/B/D/K/K/L/S/T/US/X - Ring nut for mounting thread M12 x 1, diameter 18 mm; Series 713/715/763/766/813/814/815/825/866/876

series 713/715/763/766/813/814/815/825/866/876, Accessories

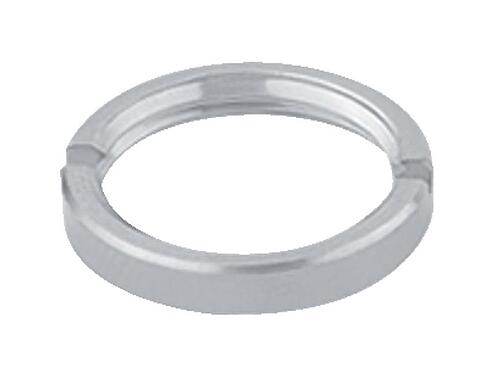

Illustration 01 5325 001 - M12-A/B/D/K/K/L/S/T/US/X - Ring nut for mounting thread M12 x 1, diameter 18 mm; Series 713/715/763/766/813/814/815/825/866/876 — Illustration

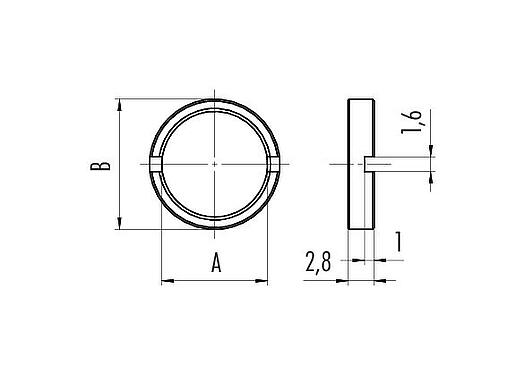

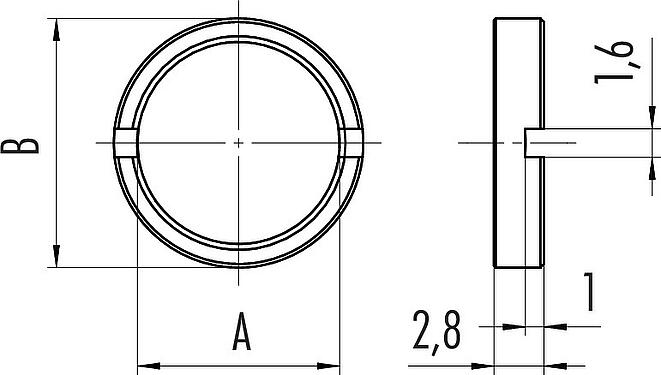

Scale drawing 01 5325 001 - M12-A/B/D/K/K/L/S/T/US/X - Ring nut for mounting thread M12 x 1, diameter 18 mm; Series 713/715/763/766/813/814/815/825/866/876 — Scale drawing

Part no.	01 5325 001
Thread	M12x1
Additional information	alternatively CuZn38 Pb2 Rmin. 410
Weight (g)	0.88
Customs tariff number	85389099
Country of Origin	CH

REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	b370886d-f0c9-4ba6-8540-b40f3cc31deb
Surface	DIN 05968 - Cu/Ni4 halbmatt
Material	CuZn39 Pb3 430

eCl@ss 11.1	27-44-01-92

Report error on this page

Security notices

The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.

Downloads

Data sheet 01 5325 001

STP-Data 01 5325 001
