  1. Products
  2. Automation technology - Data transmission
  3. M12 Hybrid

A-coded M12 connector for One Cable solutions - Automation technology

These connector systems are the perfect solution where power and signal are required. One Cable Solution (OCS) in the proven M12 package, IP67/68/69. 9 poles - 2 power + 7 signal contacts allow high flexibility. Materials are suitable for temporary outdoor use. M12-A screw locking with plastic threaded ring and for tougher requirements with stainless steel threaded ring. Another feature is the easy assembly.

Automation Technology - Data Transmission--Female cable connector_767_2_KD_Hybrid_Kunststoff
77 8406 0000 30709-0185
M12 Female cable connector, Contacts: 2+7, moulded on the cable, IP67, PUR, black, Power: 2 x 0.75 (AWG 18), Signal: 7 x 0.14 (AWG 26), 1.85 m
M12-Hybrid, series 767, Automation Technology - Data Transmission
Details
Automation Technology - Data Transmission--Female cable connector_767_2_KD_Hybrid_VA
77 8730 0000 30709-0185
M12 Female cable connector, Contacts: 2+7, moulded on the cable, IP67, PUR, black, Power: 2 x 0.75 (AWG 18), Signal: 7 x 0.14 (AWG 26), 1.85 m
M12-Hybrid, series 767, Automation Technology - Data Transmission
Details

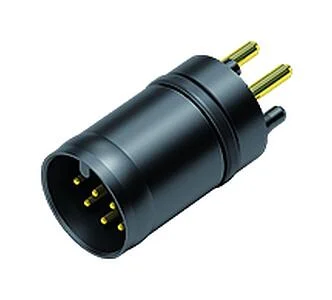

Automation Technology - Data Transmission--Male receptacle_767_3_EBS_Hybrid
86 7047 0000 00009
M12 Male receptacle, Contacts: 2+7, Contact 1+2 THR / Contact 3-9 SMT, IP67 plugged and locked
M12-Hybrid, series 767, Automation Technology - Data Transmission
Details
