Part no.: 86 7047 0000 00009

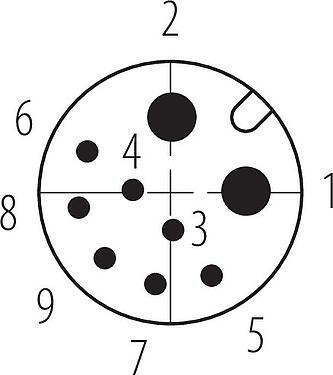

M12 Male receptacle, Contacts: 2+7, Contact 1+2 THR / Contact 3-9 SMT, IP67 plugged and locked
M12-Hybrid, series 767, Automation Technology - Data Transmission
3D View(Click to activate)
General features
Moreless| Part no. | 86 7047 0000 00009 |
| Connector design | Male receptacle |

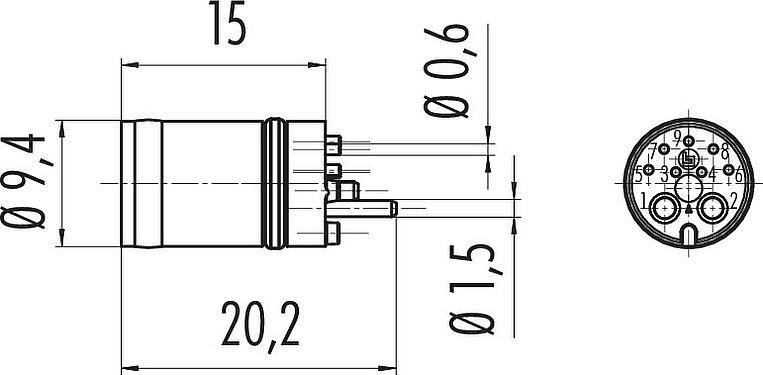

| Version | Connector pin straight |
| Connector locking system | screw |

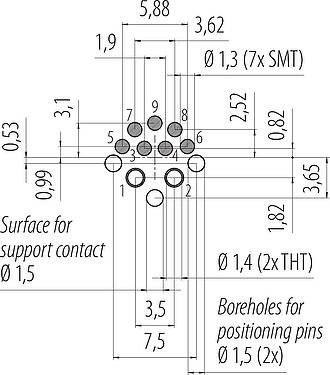

| Termination | Contact 1+2 THR / Contact 3-9 SMT |
| Degree of protection | IP67 plugged and locked |
| Temperature range from/to | -25 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 1.75 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | Power: 63 V, Signal: 12.5 V |
| Rated impulse voltage | Power: 800 V, Signal: 500 V |
| Rated current | 12 A Power / 0,5 A Signal |
| Pollution degree | 2 |
| Overvoltage category | II |
| Insulating material group | I |
Material
Moreless| Housing material | PUR |
| Contact body material | PA |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | e000918b-be91-4246-a1a2-e0dcdf3e5cb4 |
Classifications
Moreless| eCl@ss 11.1 | 27-44-01-09 |
| ETIM 9.0 | EC003569 |
Security notices
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
