M12-A/B/D/K/K/L/S/T/US/X - Hexagon nut for mounting thread; Series 713/715/763/766/813/814/815/825/866/876

Part no.: 16 0402 001

M12-A/B/D/K/K/L/S/T/US/X - Hexagon nut for mounting thread; Series 713/715/763/766/813/814/815/825/866/876

series 713/715/763/766/813/814/815/825/866/876, Accessories

Illustration 16 0402 001 - M12-A/B/D/K/K/L/S/T/US/X - Hexagon nut for mounting thread; Series 713/715/763/766/813/814/815/825/866/876 — Illustration

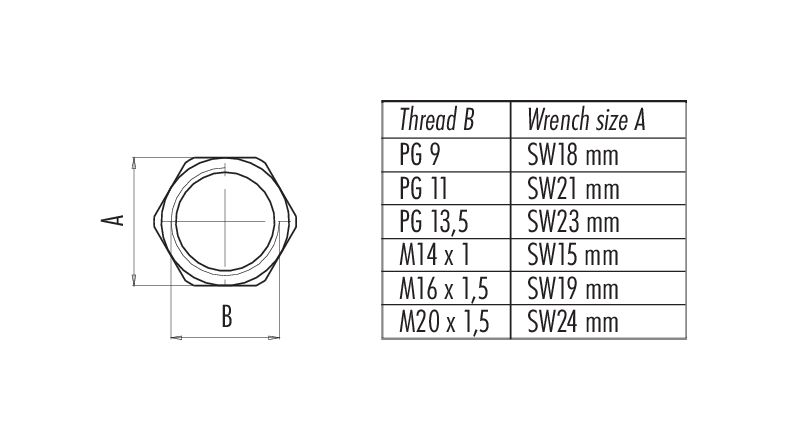

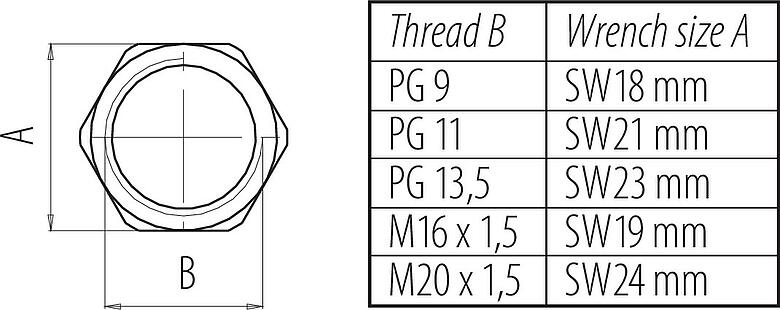

Scale drawing 16 0402 001 - M12-A/B/D/K/K/L/S/T/US/X - Hexagon nut for mounting thread; Series 713/715/763/766/813/814/815/825/866/876 — Scale drawing

Part no.	16 0402 001
Thread	PG 9
Width across flat	SW 18
Weight (g)	2.39
Customs tariff number	74199990
Country of Origin	DE

REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	c7540ac3-9354-49e4-ba3f-318ee1af1e74
Surface	DIN 50968-Cu/Ni 4 halbmatt
Material	CuZn39Pb3

eCl@ss 11.1	27-44-01-92

Report error on this page

Security notices

The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.

Downloads

Data sheet 16 0402 001

STP-Data 16 0402 001
