M12-A/B/D - Hexagon nut for mounting thread; SMT; Series 763/766/876

Part no.: 38 5385 100 001

M12-A/B/D - Hexagon nut for mounting thread; SMT; Series 763/766/876

Accessories

Illustration 38 5385 100 001 - M12-A/B/D - Hexagon nut for mounting thread; SMT; Series 763/766/876 — Illustration

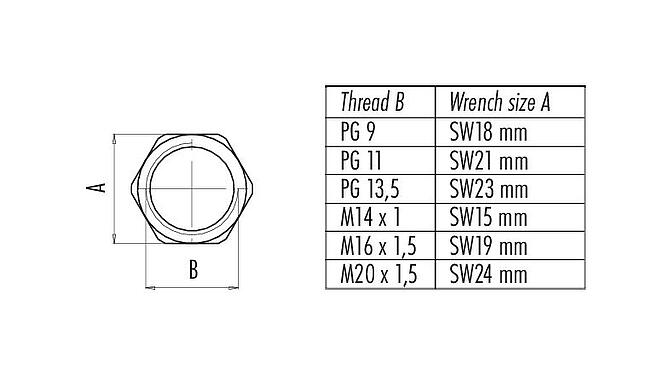

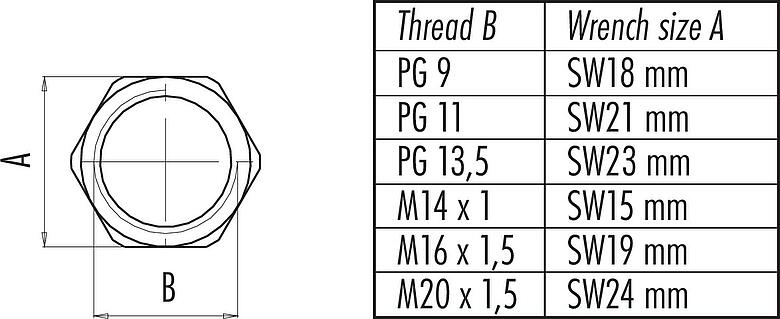

Scale drawing 38 5385 100 001 - M12-A/B/D - Hexagon nut for mounting thread; SMT; Series 763/766/876 — Scale drawing

Part no.	38 5385 100 001
Thread	M14x1
Width across flat	SW 15
Weight (g)	10.0
Country of Origin	DE

REACH SVHC	NK (Nicht klassifiziert)
SCIP number	SCIP-number not available
Surface	DIN 50968-Cu/Ni4 halbmatt
Material	CuZn39Pb3

Report error on this page

Downloads

Data sheet 38 5385 100 001

38 5385 100 001

38 5385 100 001

38 5385 100 001

STP-Data 38 5385 100 001
