  4. M9 IP67 - Protection cap for flanged plug; 702/712 series
Part no.: 08 0351 000 001

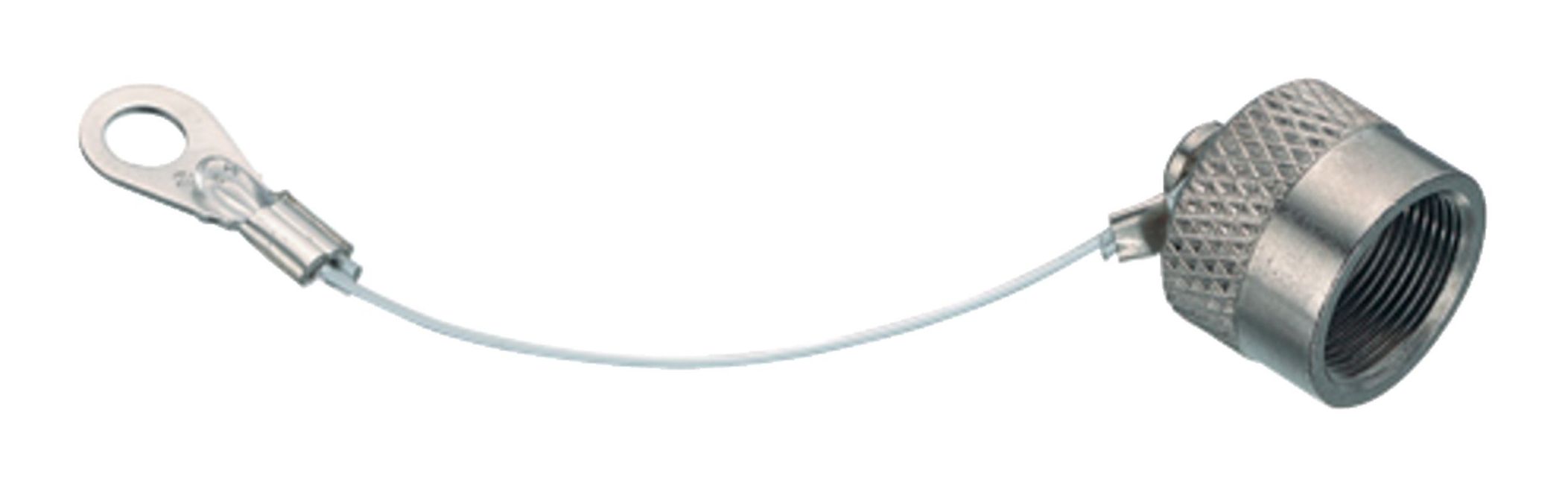

M9 IP67 - Protection cap for flanged plug; 702/712 series

series 702/712, Accessories
Compare product
Downloads
General features
Moreless
Part no. 08 0351 000 001
Degree of protection IP67
Temperature range -40 °C/+85 °C
Additional information for male panel mount connector
Weight (g) 4.13
Customs tariff number 85366990
Country of Origin HU
Contact body material silver
Material protective cap CuZn
Strap material Nylon
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 4217ec10-f211-460d-9f6e-2a1f4ceec94c
Surface DIN 50968 - Cu/Ni4 halbmatt
eCl@ss 11.1 27-44-02-08
ETIM 9.0 EC002314
Security notices
  1. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Accessories--_712_Z_SK2
08 0351 000 001
