  4. RD24 - Protective cap for flange plug; Series 692/693
Part no.: 08 2301 000 000

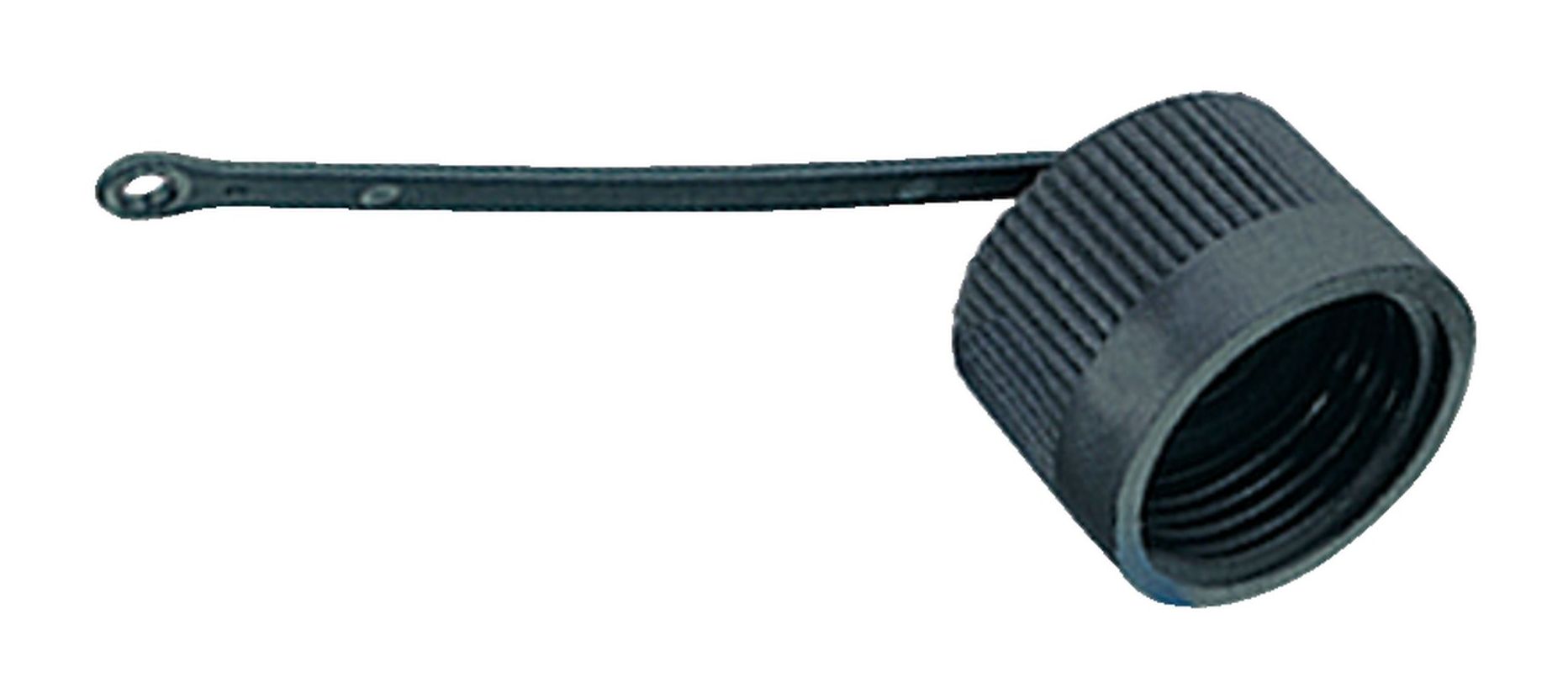

RD24 - Protective cap for flange plug; Series 692/693

series 692/693, Accessories
Compare product
Downloads
General features
Moreless
Part no. 08 2301 000 000
Degree of protection IP67
Temperature range -40 °C/+85 °C
Additional information for male panel mount connector
Weight (g) 10.67
Customs tariff number 85366990
Country of Origin HU
Contact body material black
Material protective cap PA
Strap material PUR
Material seal NBR
REACH SVHC None (No pollutants)
SCIP number SCIP-number not available
Material PA66 GF25 schwarz
eCl@ss 11.1 27-44-02-08
ETIM 9.0 EC002314
Security notices
  1. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Accessories--_692_Z_SK4
08 2301 000 000
