  4. M8 / AS-Interface - Protection cap for flange socket, front mounting; Series 718/772/775/768
Part no.: 08 2973 000 000

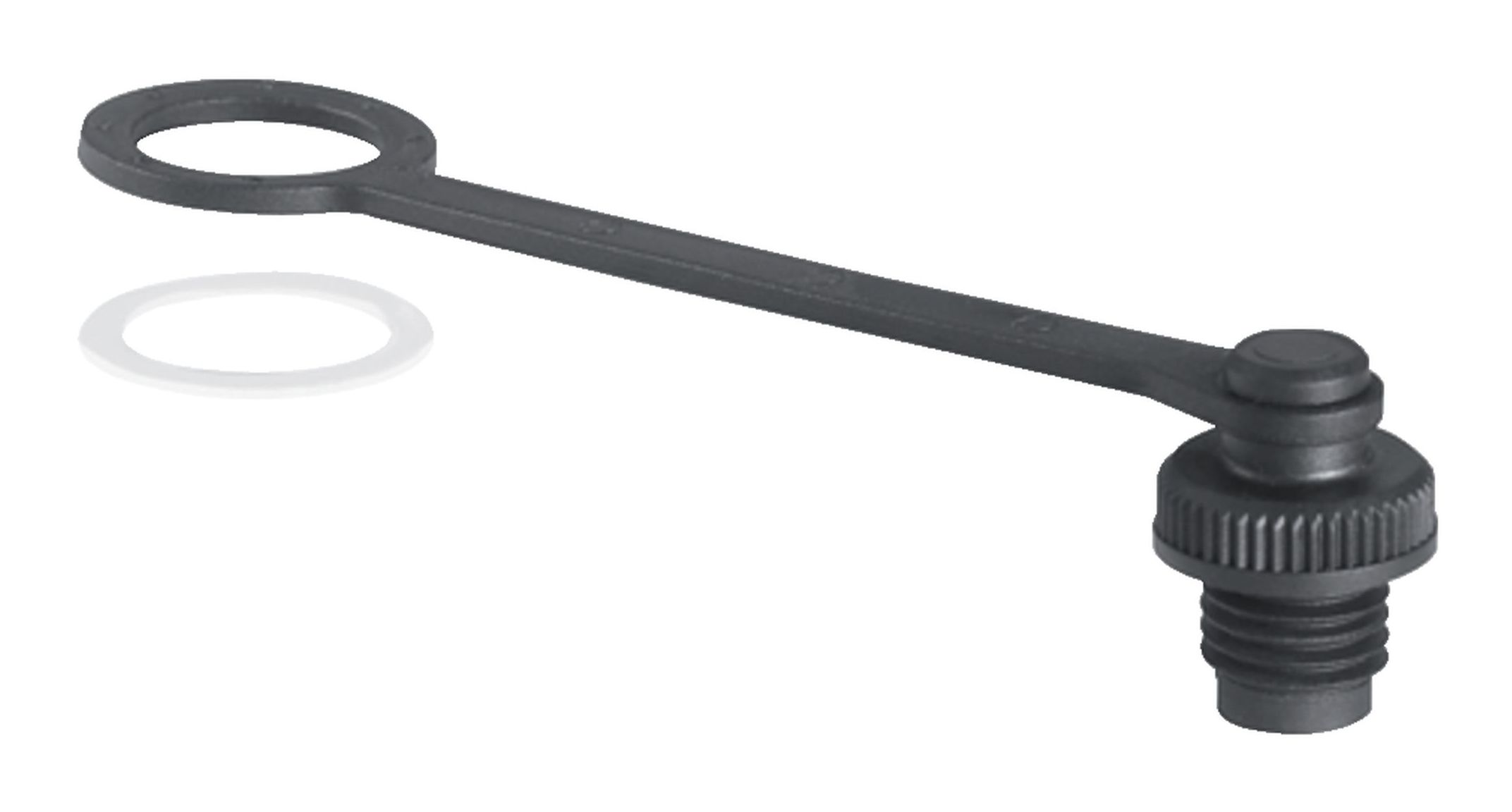

M8 / AS-Interface - Protection cap for flange socket, front mounting; Series 718/772/775/768

series 718/772/775/768, Accessories
Compare product
Downloads
General features
Moreless
Part no. 08 2973 000 000
Degree of protection IP67
Temperature range -40 °C/+85 °C
Additional information for female panel mount connector
Weight (g) 1.29
Customs tariff number 85366990
Country of Origin DE
Contact body material black
Material protective cap PA
Strap material PUR
REACH SVHC None (No pollutants)
SCIP number SCIP-number not available
eCl@ss 11.1 27-44-02-08
ETIM 9.0 EC002314
Security notices
  1. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Accessories--_718_SK.4_Oese
08 2973 000 000
