Part no.: 08 3109 000 000

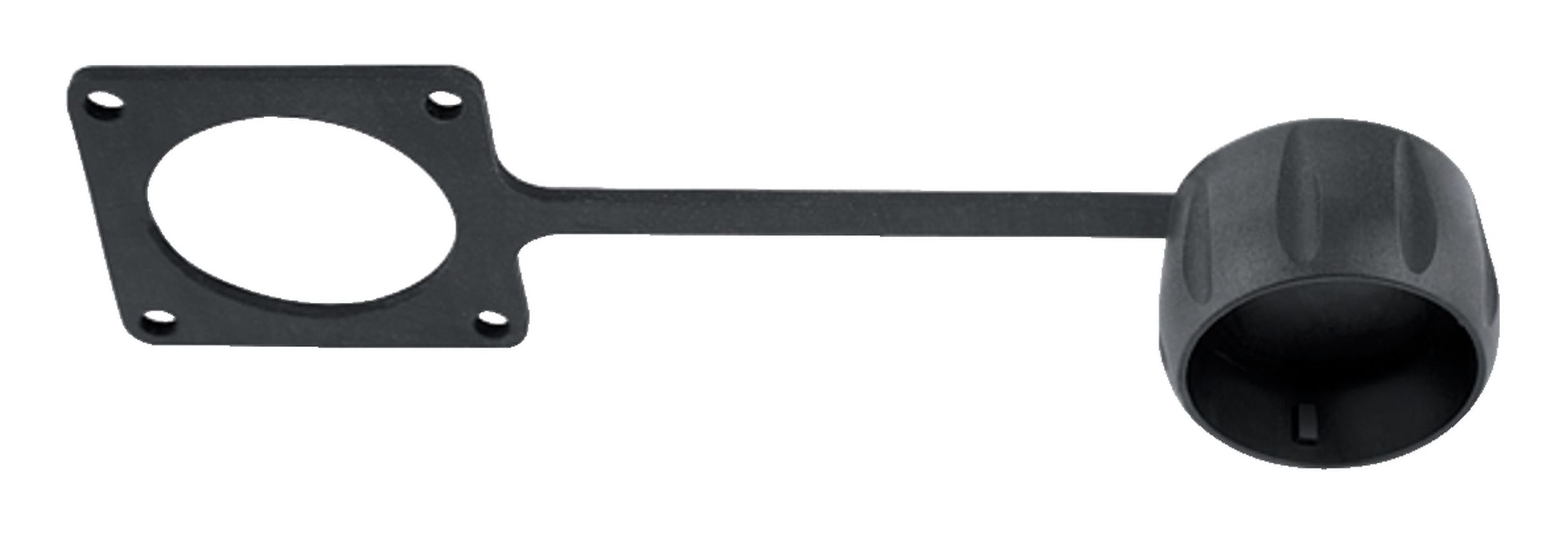

Bayonet HEC - Protective cap for flange plug; Series 696

series 696, Accessories
Compare product
Downloads
General features
Moreless
Part no. 08 3109 000 000
Degree of protection IP68/IP69K plugged
Temperature range -40 °C/+85 °C
Additional information with retaining strap
Weight (g) 14.73
Customs tariff number 85366990
Country of Origin DE
Contact body material black
Material protective cap PA
Strap material HNBR
Material seal HNBR
REACH SVHC None (No pollutants)
SCIP number SCIP-number not available
eCl@ss 11.1 27-44-02-08
ETIM 9.0 EC002314
Security notices
  1. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Accessories--_696_FS_Schuka_Dicht
08 3109 000 000
