M12-A/B/D/K/L/S/T/US/X - Seal for square flange plug, plastic; Series 713/715/763/766/813/814/815/825/866/876

Part no.: 16 8091 000

M12-A/B/D/K/L/S/T/US/X - Seal for square flange plug, plastic; Series 713/715/763/766/813/814/815/825/866/876

series 713/715/763/766/813/814/815/825/866/876, Accessories

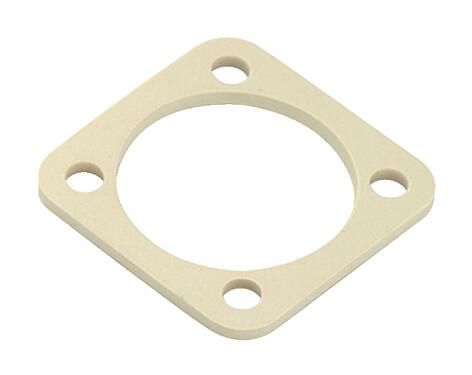

Illustration 16 8091 000 - M12-A/B/D/K/L/S/T/US/X - Seal for square flange plug, plastic; Series 713/715/763/766/813/814/815/825/866/876 — Illustration

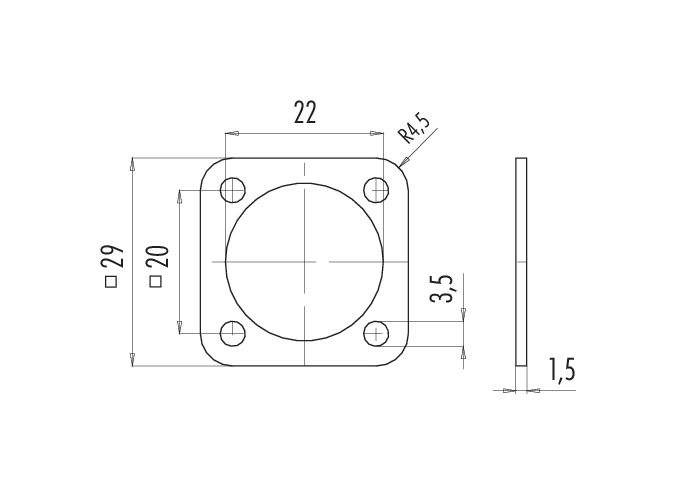

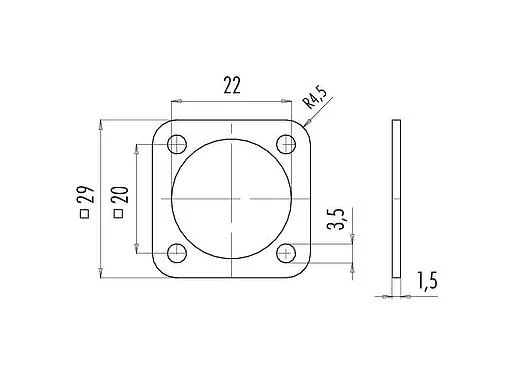

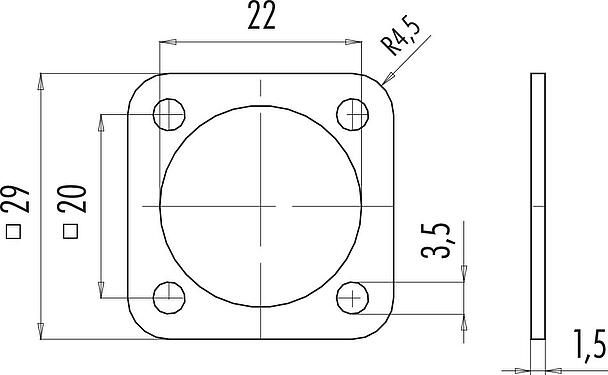

Scale drawing 16 8091 000 - M12-A/B/D/K/L/S/T/US/X - Seal for square flange plug, plastic; Series 713/715/763/766/813/814/815/825/866/876 — Scale drawing

Part no.	16 8091 000
Additional information	for male power connector
Weight (g)	0.854
Customs tariff number	40169300
Country of Origin	DE

Material	NBR-bg 62 Shore A

eCl@ss 11.1	27-44-01-92

Report error on this page

Security notices

The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.

Downloads

Data sheet 16 8091 000

STP-Data 16 8091 000
