Solder eye ring, shielding sheet
M12-A/B/D/K/K/L/S/T/US/X - Shielding plate for flange connectors, screwable from the rear, PG9; series 713/715/763/766/813/814/815/825/866/876

Part no.: 04 0734 124

M12-A/B/D/K/K/L/S/T/US/X - Shielding plate for flange connectors, screwable from the rear, PG9; series 713/715/763/766/813/814/815/825/866/876

series 713/715/763/766/813/814/815/825/866/876, Accessories

Illustration 04 0734 124 - M12-A/B/D/K/K/L/S/T/US/X - Shielding plate for flange connectors, screwable from the rear, PG9; series 713/715/763/766/813/814/815/825/866/876 — Illustration

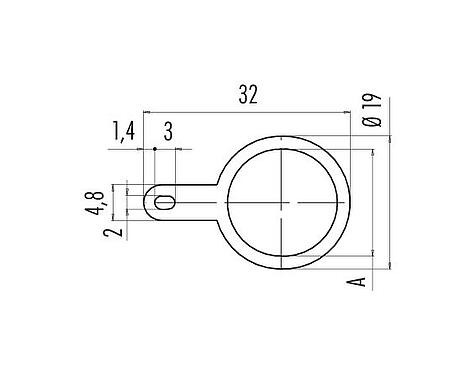

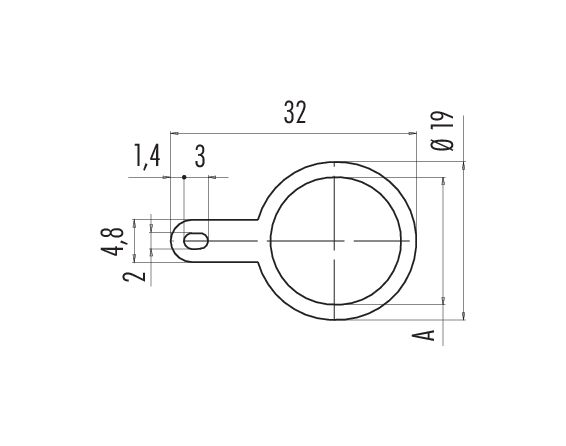

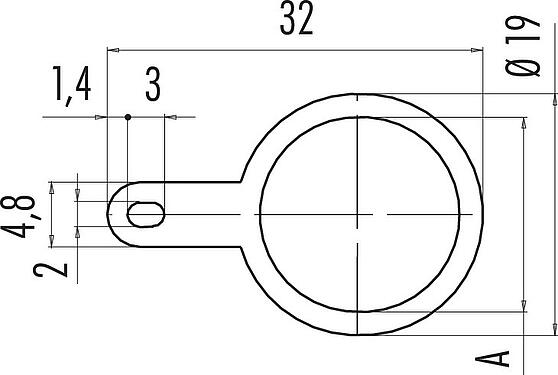

Scale drawing 04 0734 124 - M12-A/B/D/K/K/L/S/T/US/X - Shielding plate for flange connectors, screwable from the rear, PG9; series 713/715/763/766/813/814/815/825/866/876 — Scale drawing

Part no.	04 0734 124
Weight (g)	0.381
Customs tariff number	74092900
Country of Origin	DE

Shield connection	Solder lug

REACH SVHC	None (No pollutants)
SCIP number	None (No pollutants)
Surface	DIN 50965 Cu/Sn 4-8
Material	DIN 1791-CuZn37-F37

eCl@ss 11.1	27-44-01-92

Report error on this page

Security notices

The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.

Downloads

Data sheet 04 0734 124

STP-Data 04 0734 124
