Solder eye ring, shielding sheet
M12-A/B/D/K/K/L/S/T/US/X - Shielding plate for flange connectors, screwable from rear, M16x1.5; 713/715/763/766/813/814/815/825/866/876 series

Part no.: 04 0735 124

M12-A/B/D/K/K/L/S/T/US/X - Shielding plate for flange connectors, screwable from rear, M16x1.5; 713/715/763/766/813/814/815/825/866/876 series

series 713/715/763/766/813/814/815/825/866/876, Accessories

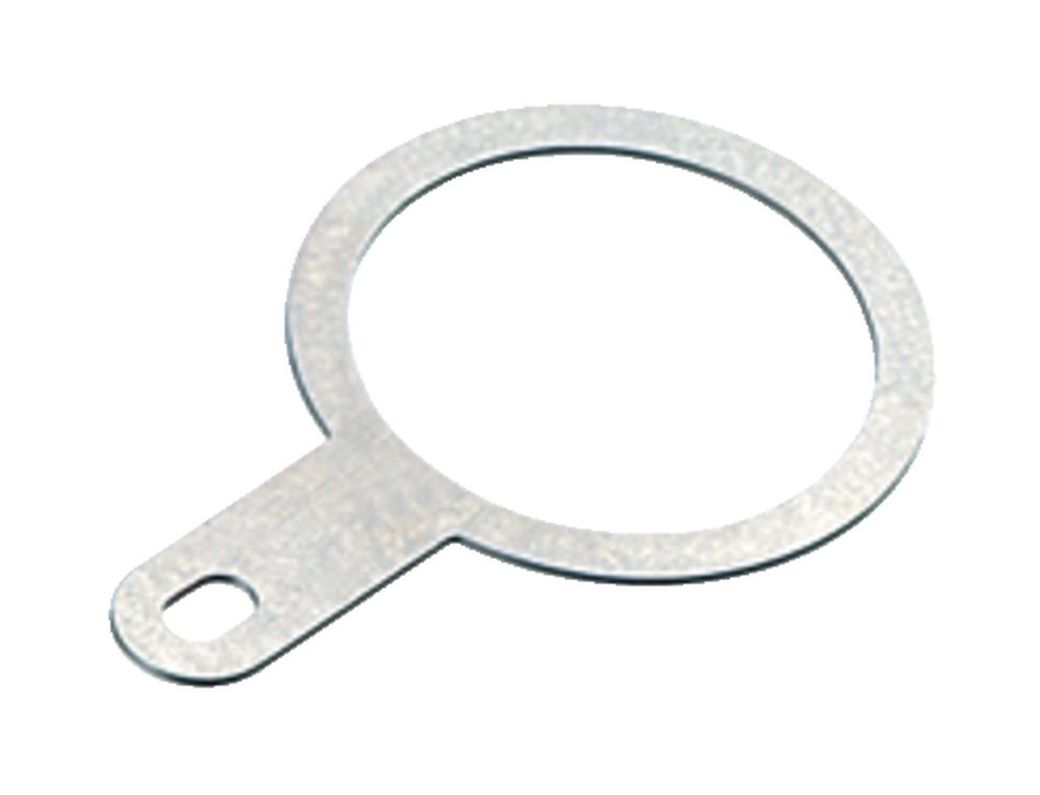

Illustration 04 0735 124 - M12-A/B/D/K/K/L/S/T/US/X - Shielding plate for flange connectors, screwable from rear, M16x1.5; 713/715/763/766/813/814/815/825/866/876 series — Illustration

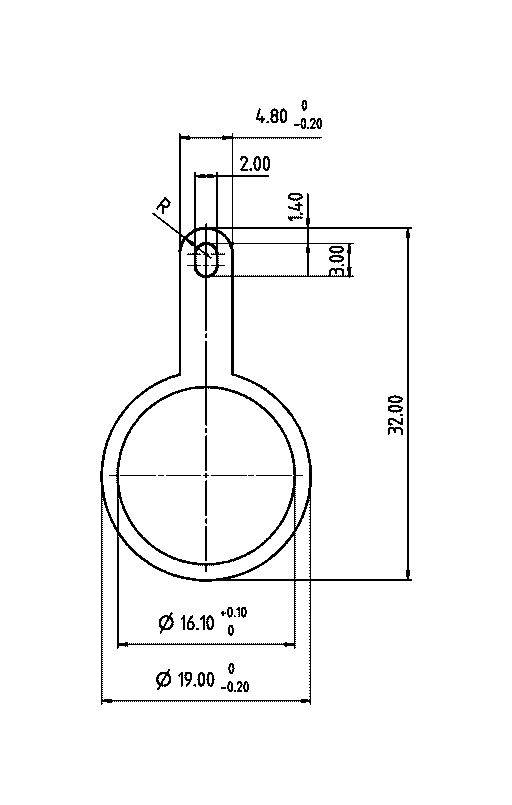

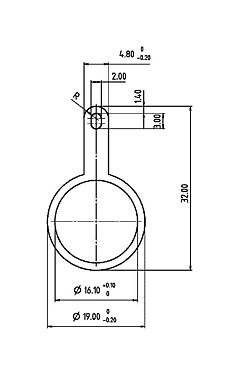

Scale drawing 04 0735 124 - M12-A/B/D/K/K/L/S/T/US/X - Shielding plate for flange connectors, screwable from rear, M16x1.5; 713/715/763/766/813/814/815/825/866/876 series — Scale drawing

Part no.	04 0735 124
Weight (g)	0.335
Customs tariff number	74092900
Country of Origin	DE

Shield connection	Solder lug

REACH SVHC	None (No pollutants)
SCIP number	None (No pollutants)
Surface	DIN 50965 - Cu/Sn 4-8
Material	DIN 1791 - CuZn37-F37

eCl@ss 11.1	27-44-01-92

Report error on this page

Security notices

The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.

Downloads

Data sheet 04 0735 124

STP-Data 04 0735 124
