M12 Male receptacle, Contacts: 5, shieldable, SMT, IP67

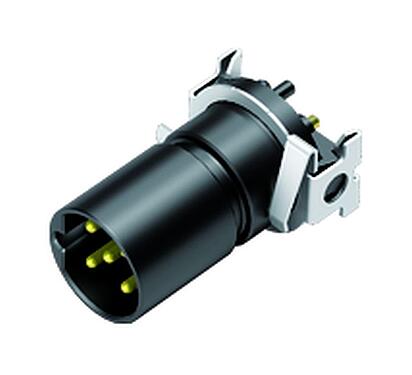

Illustration 09 0445 601 05 - M12 Male receptacle, Contacts: 5, shieldable, SMT, IP67 — Illustration

3D View 09 0445 601 05 - M12 Male receptacle, Contacts: 5, shieldable, SMT, IP67 — 3D View

Conductor layout 09 0445 601 05 - M12 Male receptacle, Contacts: 5, shieldable, SMT, IP67 — Conductor layout

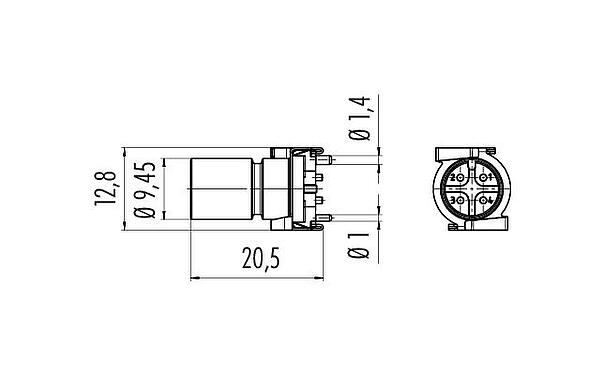

Scale drawing 09 0445 601 05 - M12 Male receptacle, Contacts: 5, shieldable, SMT, IP67 — Scale drawing

Contact arrangement (Plug-in side) 09 0445 601 05 - M12 Male receptacle, Contacts: 5, shieldable, SMT, IP67 — Contact arrangement (Plug-in side)

Part no.	09 0445 601 05
Connector design	Male receptacle
Type standard	DIN EN 61076-2-101
Version	Connector pin straight
Connector locking system	screw
Termination	SMT
Degree of protection	IP67
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	2.27
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	60 V
Rated impulse voltage	1500 V
Rated current	4.0 A
Insulation resistance	> 10⁸ Ω
Pollution degree	3
Overvoltage category	II
Insulating material group	II
EMC compliance	shieldable
Shield connection	Shielding plate

Housing material	CuZn (Brass nickel plated)
Contact body material	LCP
Contact material	CuZn (brass)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	ac6db14a-483b-4186-b9ce-d2ca1e2d8679

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569
