M12-D ethernet connector

Series PDF (4 MB)
Accessory as PDF (564 KB)

M12 D-coded industrial ethernet connectors, also known as D-coded M12 connectors, represent a crucial industrial networking solution. M12 D-coded connectors, characterized by their female and male 4-pin configuration, offer a robust and reliable means of facilitating high-speed data transmission in challenging industrial settings.


M12 D-coded connector


The M12 D-coded ethernet connector's resilience is particularly well-suited for environments that demand resistance to moisture, dust, and vibration, ensuring that network connections remain stable and uninterrupted. Furthermore, their compatibility with M12 Profinet networks positions them as an indispensable component fostering seamless and efficient communication among devices and machinery in various industrial applications.


M12 connector with d-coding


M12 connectors with D-coding of the 825/876 series for high-performance applications such as PROFINET and Ethernet have screw/cutting terminal connection and reach Cat5. Cable connectors are also available with moulded cable, flange connectors have solder and dip solder connections. The connectors have excellent shielding and achieve IP67 protection. Shielded M12-D to RJ45 adapters are available straight and angled.


Find your suitable M12-D connector from binder.

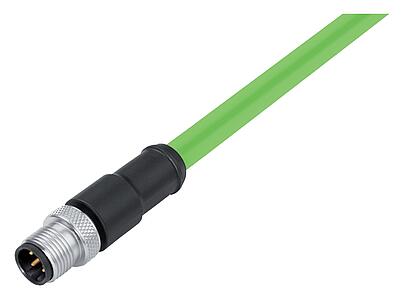

Automation Technology - Data Transmission--Male cable connector_825_1_ProfiNET
77 4529 0000 50704-0500
M12 Male cable connector, Contacts: 4, shielded, moulded on the cable, IP67, UL, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 5 m
M12-D, series 876, Automation Technology - Data Transmission
Details
Automation Technology - Data Transmission--Male cable connector_825_1_ProfiNET
77 4529 0000 50704-1000
M12 Male cable connector, Contacts: 4, shielded, moulded on the cable, IP67, UL, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 10 m
M12-D, series 876, Automation Technology - Data Transmission
Details

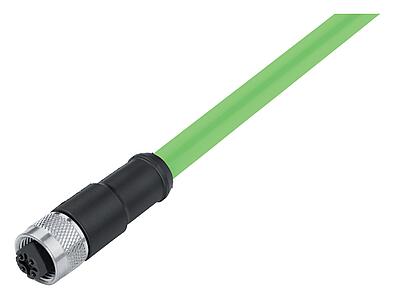

Automation Technology - Data Transmission--Female cable connector_825_2_ProfiNET
77 4530 0000 50704-0200
M12 Female cable connector, Contacts: 4, shielded, moulded on the cable, IP67, UL, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 2 m
M12-D, series 876, Automation Technology - Data Transmission
Details
Automation Technology - Data Transmission--Female cable connector_825_2_ProfiNET
77 4530 0000 50704-0500
M12 Female cable connector, Contacts: 4, shielded, moulded on the cable, IP67, UL, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 5 m
M12-D, series 876, Automation Technology - Data Transmission
Details
Automation Technology - Data Transmission--Female cable connector_825_2_ProfiNET
77 4530 0000 50704-1000
M12 Female cable connector, Contacts: 4, shielded, moulded on the cable, IP67, UL, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 10 m
M12-D, series 876, Automation Technology - Data Transmission
Details

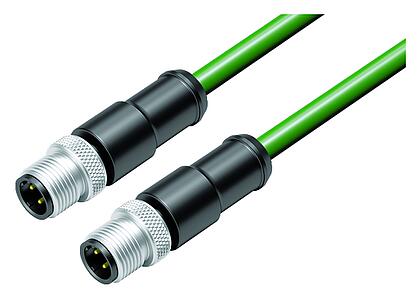

Automation Technology - Data Transmission--Connecting cable 2 male cable connectors_VL_KS-77-4529_KS-77-4529-50704_green
77 4529 4529 50704-0200
M12/M12 Connecting cable 2 male cable connectors, Contacts: 4, shielded, moulded on the cable, IP67, UL, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 2 m
M12-D, series 876, Automation Technology - Data Transmission
Details
Automation Technology - Data Transmission--Connecting cable 2 male cable connectors_VL_KS-77-4529_KS-77-4529-50704_green
77 4529 4529 50704-0500
M12/M12 Connecting cable 2 male cable connectors, Contacts: 4, shielded, moulded on the cable, IP67, UL, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 5 m
M12-D, series 876, Automation Technology - Data Transmission
Details
Automation Technology - Data Transmission--Connecting cable 2 male cable connectors_VL_KS-77-4529_KS-77-4529-50704_green
77 4529 4529 50704-1000
M12/M12 Connecting cable 2 male cable connectors, Contacts: 4, shielded, moulded on the cable, IP67, UL, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 10 m
M12-D, series 876, Automation Technology - Data Transmission
Details

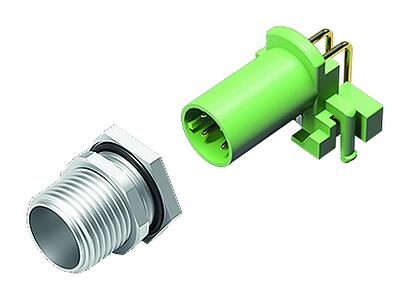

Automatisierungstechnik - Datenübertragung--Flanschstecker_876_3_FS_PCB_zweit_wi
99 3731 203 04
M12 Male panel mount connector, Contacts: 4, shieldable, THR, IP67, UL
M12-D, series 876, Automation Technology - Data Transmission
Details
Automatisierungstechnik - Datenübertragung--Flanschstecker_876_3_FS_PCB_zweit_wi
99 3731 202 04
M12 Male panel mount connector, Contacts: 4, unshielded, THR, IP67, UL, two-part design
M12-D, series 876, Automation Technology - Data Transmission
Details

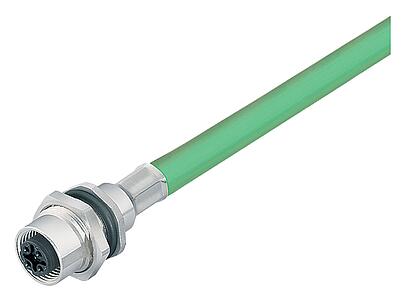

Automation Technology - Data Transmission--Female panel mount connector_876_Profi_FD_3
70 3734 706 04
M12 Female panel mount connector, Contacts: 4, shielded, with cable assembled, IP67, UL, PG 9, Profinet, PUR, green, 2 x 2 x AWG 22, front fastened, 0.5 m
M12-D, series 876, Automation Technology - Data Transmission
Details

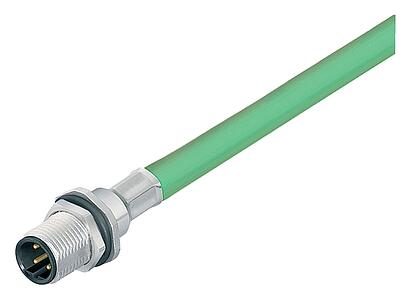

Automation Technology - Data Transmission--Male panel mount connector_876_Profi_FS_1
70 3733 706 04
M12 Male panel mount connector, Contacts: 4, shielded, with cable assembled, IP67, UL, PG 9, Profinet, PUR, green, 2 x 2 x AWG 22, front fastened, 0.5 m
M12-D, series 876, Automation Technology - Data Transmission
Details
