M12 Contact insert, Contacts: 8, shieldable, THT, IP67, UL

Illustration 09 3782 200 08 - M12 Contact insert, Contacts: 8, shieldable, THT, IP67, UL — Illustration

3D View 09 3782 200 08 - M12 Contact insert, Contacts: 8, shieldable, THT, IP67, UL — 3D View

Conductor layout 09 3782 200 08 - M12 Contact insert, Contacts: 8, shieldable, THT, IP67, UL — Conductor layout

Component part drawing 09 3782 200 08 - M12 Contact insert, Contacts: 8, shieldable, THT, IP67, UL — Component part drawing

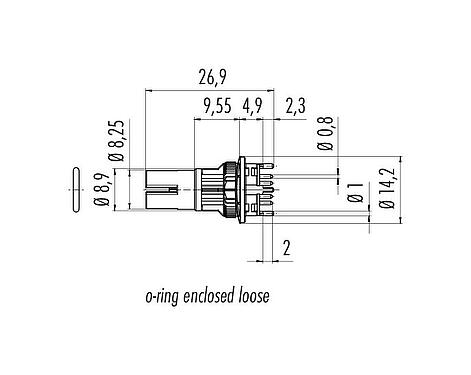

Scale drawing 09 3782 200 08 - M12 Contact insert, Contacts: 8, shieldable, THT, IP67, UL — Scale drawing

Contact arrangement (Plug-in side) 09 3782 200 08 - M12 Contact insert, Contacts: 8, shieldable, THT, IP67, UL — Contact arrangement (Plug-in side)

Part no.	09 3782 200 08
Connector design	Contact insert
Type standard	DIN EN 61076-2-109
Version	Connector socket straight
Connector locking system	screw
Termination	THT
Degree of protection	IP67
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	4.16
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	50 V (AC) / 60 V (DC)
Rated current	0.5 A
Insulation resistance	> 10⁸ Ω
Pollution degree	3
Transmission rate	CAT 6A
Overvoltage category	II
Insulating material group	III
EMC compliance	shieldable
Shield connection	Shield pin

Housing material	Zinc die-cast nickel-plated
Contact body material	PA
Contact material	CuSn (bronze)
Contact plating	Au (gold)
Locking material	CuZn (brass)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	cf860b13-bac8-4d04-a764-ebbe103a50eb

Approvals	UL

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569

Low Voltage Directive	2014/35/EU (EN 60204-1:2018;EN 60529:1991)

Report error on this page

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
