Part no.: 77 4506 0000 90708-0200

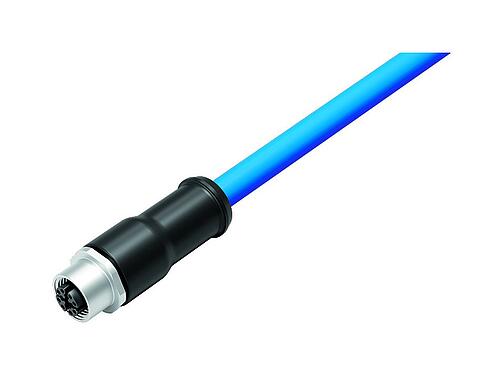

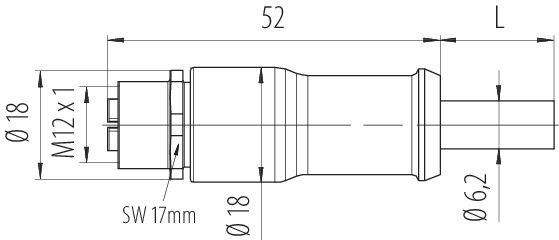

M12 Female cable connector, Contacts: 8, shielded, moulded on the cable, IP67, M12x1.0, E-beam X-FRNCL/LSNH, blue, 2 m
M12-X, series 876, Automation Technology - Data Transmission
General features
Moreless| Part no. | 77 4506 0000 90708-0200 |
| Connector design | Female cable connector |
| Cable length | 2 m |
| Version | Single ended cordsets |
| Connector locking system | screw |
| Termination | moulded on the cable |
| Degree of protection | IP67 |
| Cross-sectional area | AWG 24/19 |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 191.00 |
| Customs tariff number | 85444290 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 50 V (AC) / 60 V (DC) |
| Rated impulse voltage | 800 V |
| Rated current | 0.5 A |
| Insulation resistance | > 108 Ω |
| Pollution degree | 3 |
| Transmission rate | CAT 7 |
| Insulating material group | II |
| EMC compliance | shielded |
Material
Moreless| Housing material | Zinc die-cast nickel-plated |
| Contact body material | Polymid |
| Contact material | CuZn (brass) / CuSn (bronze) |
| Contact plating | Au (gold) |
| Locking material | Zinc die-cast nickel-plated |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 6229f1e2-7fa3-4572-aedb-5a7502faf267 |
Authorization/approvals
Moreless| Norms and regulations | DIN EN 61373 |
Cable data
Moreless| Structure of the cable | |
| Cable diameter | 8.1 mm |
| Sheath material | E-beam X-FRNCL/LSNH |
| Cable color | blue |
| Thermal properties | |
| Temperature range cable in move from/to | -40 °C / 90 °C |
| Temperature range cable fixed from/to | -5 °C / 50 °C |
| Other features | |
| Flame-resistant |
IEC 60332-1-2 IEC 60332-3-25 cat D |
Security notices
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
