M12 Female panel mount connector, Contacts: 8, shieldable, SMT, IP68, M14x1.0

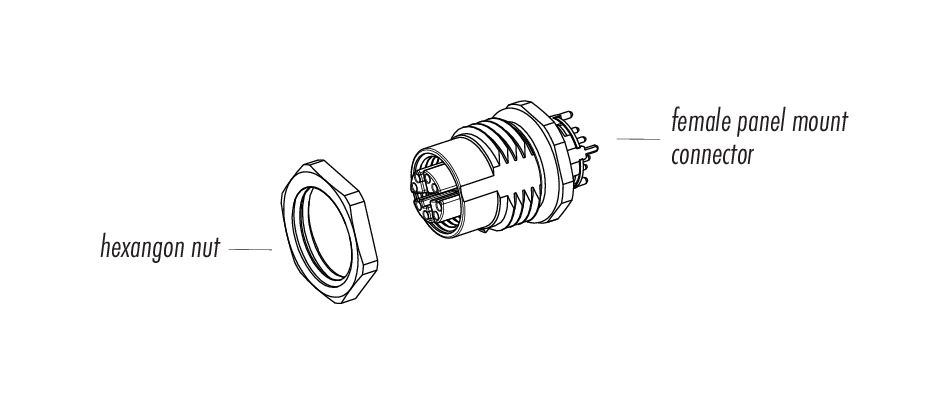

Illustration 99 3782 401 08 - M12 Female panel mount connector, Contacts: 8, shieldable, SMT, IP68, M14x1.0 — Illustration

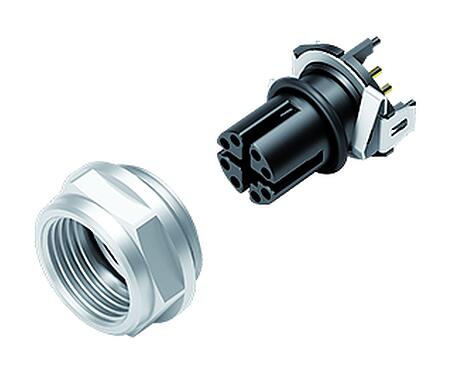

3D View 99 3782 401 08 - M12 Female panel mount connector, Contacts: 8, shieldable, SMT, IP68, M14x1.0 — 3D View

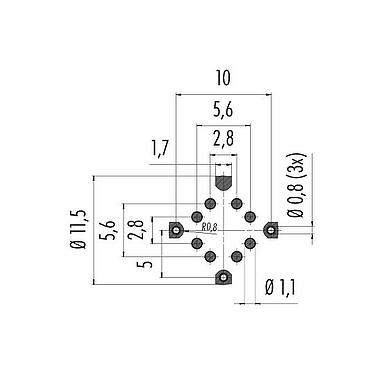

Conductor layout 99 3782 401 08 - M12 Female panel mount connector, Contacts: 8, shieldable, SMT, IP68, M14x1.0 — Conductor layout

Component part drawing 99 3782 401 08 - M12 Female panel mount connector, Contacts: 8, shieldable, SMT, IP68, M14x1.0 — Component part drawing

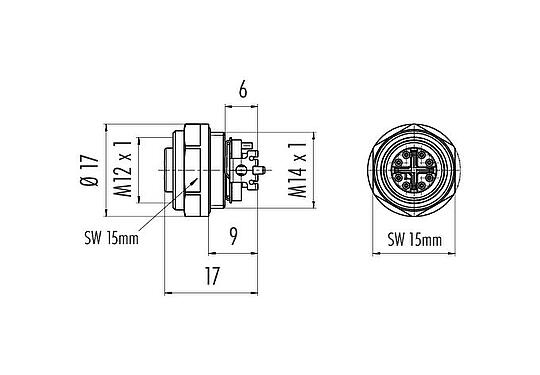

Scale drawing 99 3782 401 08 - M12 Female panel mount connector, Contacts: 8, shieldable, SMT, IP68, M14x1.0 — Scale drawing

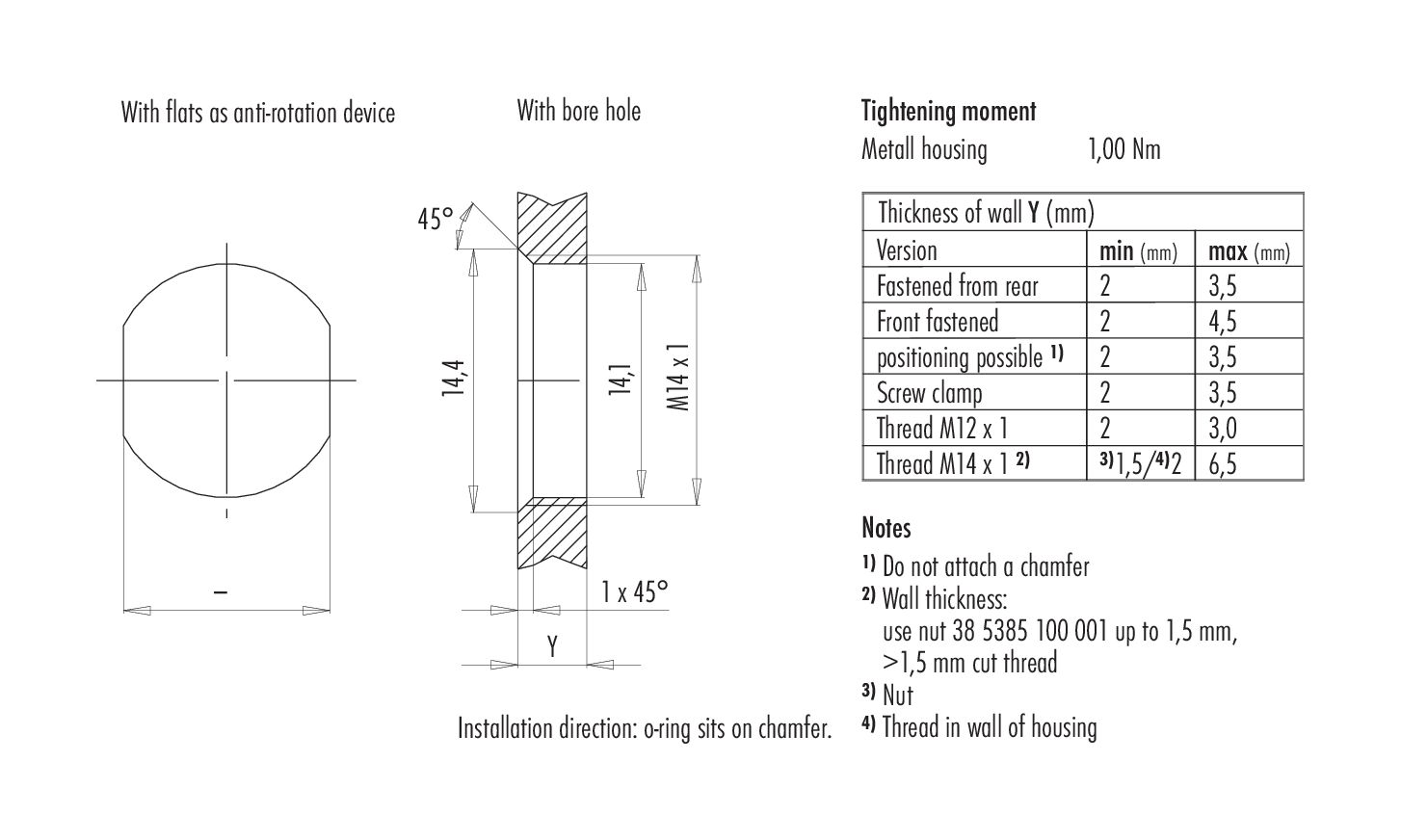

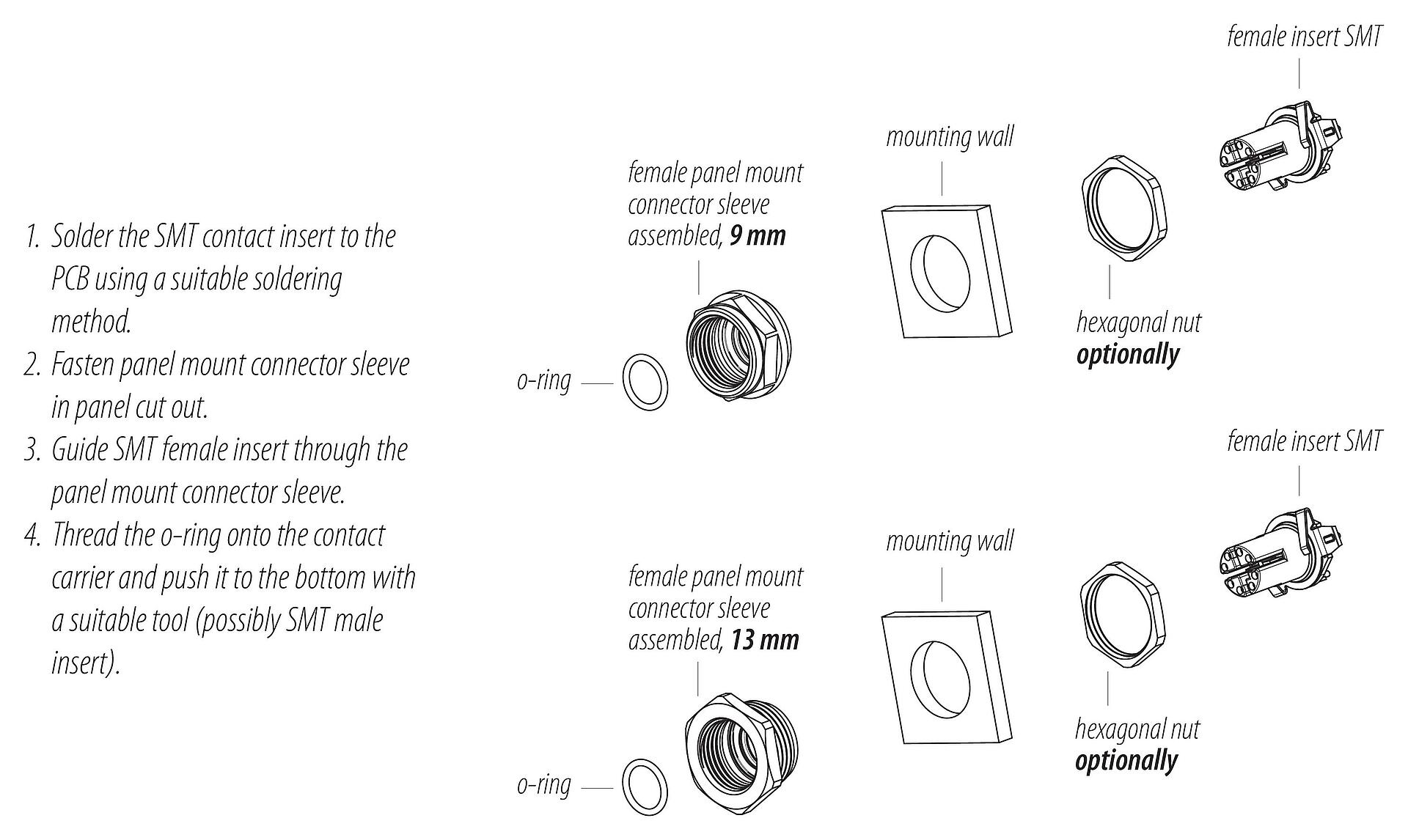

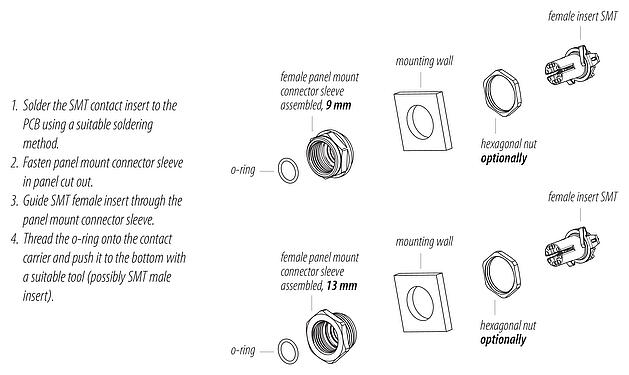

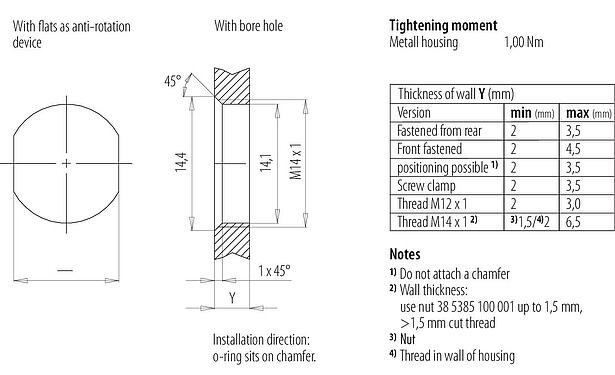

Assembly instructions / Panel cut-out 99 3782 401 08 - M12 Female panel mount connector, Contacts: 8, shieldable, SMT, IP68, M14x1.0 — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) 99 3782 401 08 - M12 Female panel mount connector, Contacts: 8, shieldable, SMT, IP68, M14x1.0 — Contact arrangement (Plug-in side)

Part no.	99 3782 401 08
Connector design	Female panel mount connector
Type standard	DIN EN 61076-2-109
Version	Connector socket straight
Connector locking system	screw
Termination	SMT
Degree of protection	IP68
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 100 Mating cycles
Installation height	9
Weight (g)	8.09
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	50 V (AC) / 60 V (DC)
Rated current	0.5 A
Insulation resistance	> 10⁸ Ω
Pollution degree	3
Transmission rate	CAT 6A
Overvoltage category	II
Insulating material group	III
EMC compliance	shieldable
Shield connection	Shielding plate

Housing material	PUR
Contact body material	PA
Contact material	CuSn (bronze)
Contact plating	Au (gold)
Locking material	CuZn (brass)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	71920608-87c9-4b74-ae03-a9b1ca88a9de

eCl@ss 11.1	27-44-01-02
ETIM 9.0	EC002635

Report error on this page

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
