86 8105 1100 00004 | binder Automatisierungstechnik M5 Flanschstecker, Contacts: 4, unshielded, THT, IP67, UL

Menu

Menu

Products
Automation technology - Sensors and actuators
M5
M5 Male panel mount connector, Contacts: 4, unshielded, THT, IP67, UL

Illustration 86 8105 1100 00004 - M5 Male panel mount connector, Contacts: 4, unshielded, THT, IP67, UL — Illustration

3D View 86 8105 1100 00004 - M5 Male panel mount connector, Contacts: 4, unshielded, THT, IP67, UL — 3D View

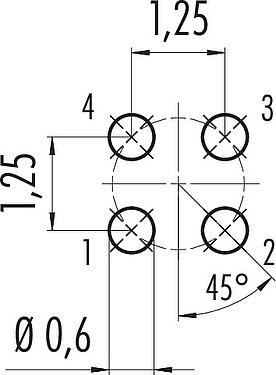

Conductor layout 86 8105 1100 00004 - M5 Male panel mount connector, Contacts: 4, unshielded, THT, IP67, UL — Conductor layout

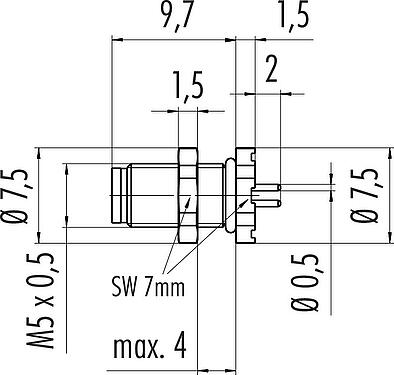

Scale drawing 86 8105 1100 00004 - M5 Male panel mount connector, Contacts: 4, unshielded, THT, IP67, UL — Scale drawing

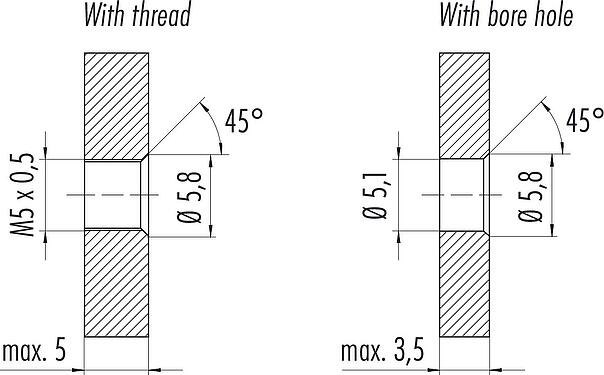

Assembly instructions / Panel cut-out 86 8105 1100 00004 - M5 Male panel mount connector, Contacts: 4, unshielded, THT, IP67, UL — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) 86 8105 1100 00004 - M5 Male panel mount connector, Contacts: 4, unshielded, THT, IP67, UL — Contact arrangement (Plug-in side)

Part no.	86 8105 1100 00004 Alternative part no.: 09 3111 81 04
Connector design	Male panel mount connector
Type standard	DIN EN 61076-2-105
Version	Connector pin straight
Connector locking system	screw
Termination	THT
Degree of protection	IP67
Temperature range from/to	-25 °C / 80 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	0.00
Country of Origin	DE

Rated voltage	60 V
Rated impulse voltage	800 V
Rated current	1.0 A
Insulation resistance	> 10⁸ Ω
Pollution degree	3
Overvoltage category	II
Insulating material group	I
EMC compliance	unshielded

Contact body material	PA
Contact material	CuZn (brass)
Contact plating	Au (gold)
REACH SVHC	NK (Nicht klassifiziert)
SCIP number	SCIP-number not available

Approvals	UL

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569

Low Voltage Directive	2014/35/EU (EN 60204-1:2018;EN 60529:1991)
RoHS Directive	2011/65/EU (EN 50581:2012)

Report error on this page

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
