Snap-In Female panel mount connector, Contacts: 8, unshielded, THT, IP67

Illustration 99 9128 490 08 - Snap-In Female panel mount connector, Contacts: 8, unshielded, THT, IP67 — Illustration

3D View 99 9128 490 08 - Snap-In Female panel mount connector, Contacts: 8, unshielded, THT, IP67 — 3D View

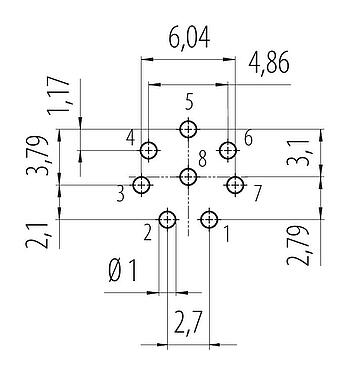

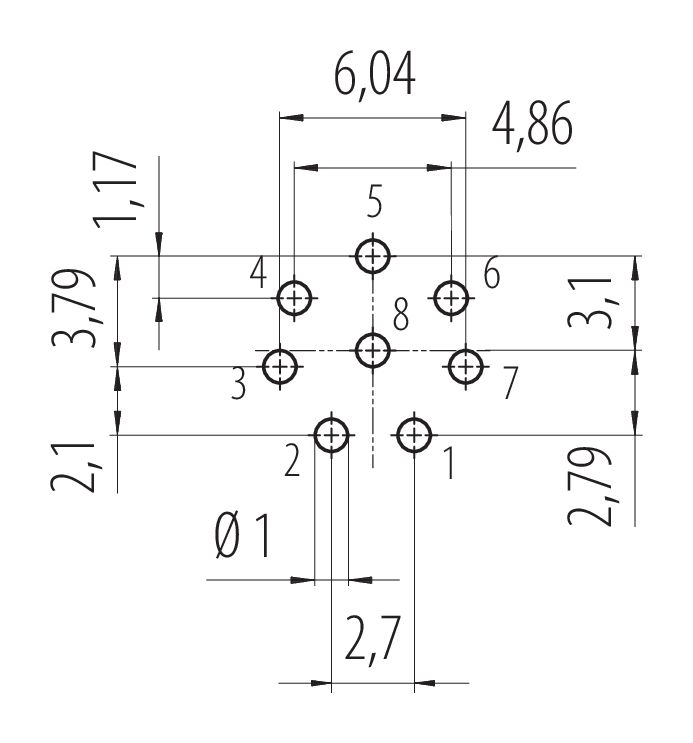

Conductor layout 99 9128 490 08 - Snap-In Female panel mount connector, Contacts: 8, unshielded, THT, IP67 — Conductor layout

Component part drawing 99 9128 490 08 - Snap-In Female panel mount connector, Contacts: 8, unshielded, THT, IP67 — Component part drawing

Scale drawing 99 9128 490 08 - Snap-In Female panel mount connector, Contacts: 8, unshielded, THT, IP67 — Scale drawing

Assembly instructions / Panel cut-out 99 9128 490 08 - Snap-In Female panel mount connector, Contacts: 8, unshielded, THT, IP67 — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) 99 9128 490 08 - Snap-In Female panel mount connector, Contacts: 8, unshielded, THT, IP67 — Contact arrangement (Plug-in side)

Part no.	99 9128 490 08
Connector design	Female panel mount connector
Version	Connector socket straight
Connector locking system	snap-in
Termination	THT
Degree of protection	IP67
Cross-sectional area	max. 0.25 mm² / AWG 24
Temperature range from/to	-25 °C / 85 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	5.55
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	125 V
Rated impulse voltage	2500 V
Rated current	2.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	2
Overvoltage category	II
Insulating material group	II
EMC compliance	unshielded

Housing material	PA
Contact body material	PA (UL94 V-0) grey
Contact material	CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	2f5e76fc-2a3b-493e-8e18-37922c863e08

eCl@ss 11.1	27-44-01-02
ETIM 9.0	EC002635

Report error on this page

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
