Snap-In Male panel mount connector, Contacts: 12, unshielded, THT, IP67

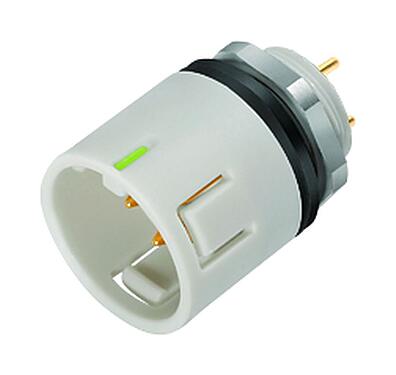

Illustration 99 9135 490 12 - Snap-In Male panel mount connector, Contacts: 12, unshielded, THT, IP67 — Illustration

3D View 99 9135 490 12 - Snap-In Male panel mount connector, Contacts: 12, unshielded, THT, IP67 — 3D View

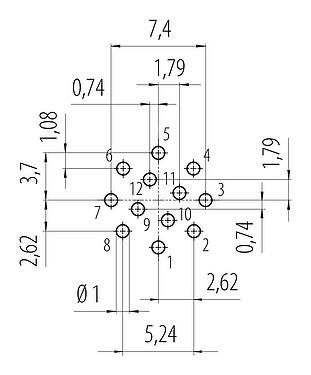

Conductor layout 99 9135 490 12 - Snap-In Male panel mount connector, Contacts: 12, unshielded, THT, IP67 — Conductor layout

Component part drawing 99 9135 490 12 - Snap-In Male panel mount connector, Contacts: 12, unshielded, THT, IP67 — Component part drawing

Scale drawing 99 9135 490 12 - Snap-In Male panel mount connector, Contacts: 12, unshielded, THT, IP67 — Scale drawing

Assembly instructions / Panel cut-out 99 9135 490 12 - Snap-In Male panel mount connector, Contacts: 12, unshielded, THT, IP67 — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) 99 9135 490 12 - Snap-In Male panel mount connector, Contacts: 12, unshielded, THT, IP67 — Contact arrangement (Plug-in side)

Part no.	99 9135 490 12
Connector design	Male panel mount connector
Version	Connector pin straight
Connector locking system	snap-in
Termination	THT
Degree of protection	IP67
Cross-sectional area	max. 0.25 mm² / AWG 24
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	4.85
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	60 V
Rated impulse voltage	800 V
Rated current	2.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	2
Overvoltage category	II
Insulating material group	II
EMC compliance	unshielded

Housing material	PA
Contact body material	PA (UL94 V-0) grey
Contact material	CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	2993ccfc-3a70-452a-adf6-2c41137e7d40

eCl@ss 11.1	27-44-01-02
ETIM 9.0	EC002635
