M12 Female cable connector, Contacts: 4, 4.0-6.0 mm, IP67

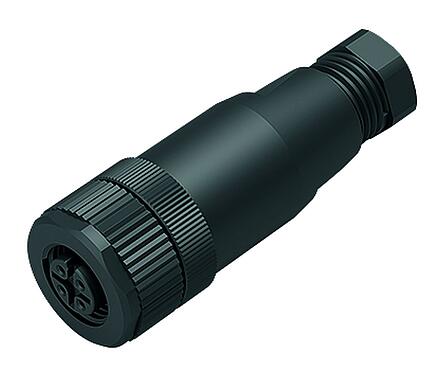

Illustration 28 1260 000 04 - M12 Female cable connector, Contacts: 4, 4.0-6.0 mm, IP67 — Illustration

3D View 28 1260 000 04 - M12 Female cable connector, Contacts: 4, 4.0-6.0 mm, IP67 — 3D View

Scale drawing 28 1260 000 04 - M12 Female cable connector, Contacts: 4, 4.0-6.0 mm, IP67 — Scale drawing

Contact arrangement (Plug-in side) 28 1260 000 04 - M12 Female cable connector, Contacts: 4, 4.0-6.0 mm, IP67 — Contact arrangement (Plug-in side)

Part no.	28 1260 000 04 Alternative part no.: 28 1206 000 00
Notice	Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right. More
Connector design	Female cable connector
Type standard	DIN EN 61076-2-101
Version	Connector socket straight
Degree of protection	IP67
Cable outlet	4.0-6.0 mm
Temperature range from/to	-40 °C / 85 °C
Weight (g)	12.79
Customs tariff number	85444290
Country of Origin	DE

Housing material	PA
Material, housing/cable	PA
Locking material	Plastic
REACH SVHC	CAS 96-45-7 (Imidazolidine-2-thione) CAS 7439-92-1 (Lead)
SCIP number	c9b2f217-b1f8-44a1-8ee2-8232b2dc5a0d

eCl@ss 11.1	27-06-03-11
ETIM 9.0	EC002638

Report error on this page

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
