Bayonet Male panel mount connector, Contacts: 4, unshielded, solder, IP40

Illustration 99 0611 00 04 - Bayonet Male panel mount connector, Contacts: 4, unshielded, solder, IP40 — Illustration

3D View 99 0611 00 04 - Bayonet Male panel mount connector, Contacts: 4, unshielded, solder, IP40 — 3D View

Component part drawing 99 0611 00 04 - Bayonet Male panel mount connector, Contacts: 4, unshielded, solder, IP40 — Component part drawing

Scale drawing 99 0611 00 04 - Bayonet Male panel mount connector, Contacts: 4, unshielded, solder, IP40 — Scale drawing

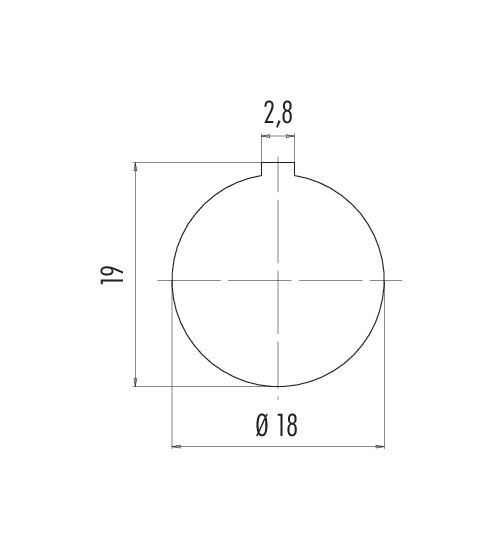

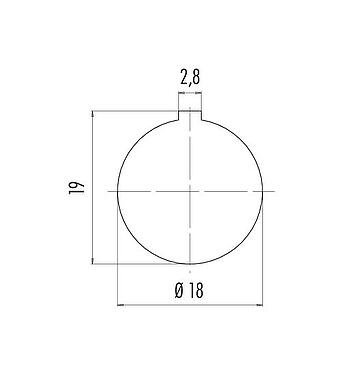

Assembly instructions / Panel cut-out 99 0611 00 04 - Bayonet Male panel mount connector, Contacts: 4, unshielded, solder, IP40 — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) 99 0611 00 04 - Bayonet Male panel mount connector, Contacts: 4, unshielded, solder, IP40 — Contact arrangement (Plug-in side)

Part no.	99 0611 00 04
Connector design	Male panel mount connector
Version	Connector pin straight
Connector locking system	Bayonet
Termination	solder
Degree of protection	IP40
Cross-sectional area	max. 0.75 mm² / AWG 18
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	5.95
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	250 V
Rated impulse voltage	1500 V
Rated current	6.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	I
Insulating material group	III
EMC compliance	unshielded

Housing material	PA
Contact body material	PBT (UL94 V-0)
Contact material	CuZn (brass)
Contact plating	Ag (silver)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	20aa35e6-dcf3-467b-a314-db92ced030c7

eCl@ss 11.1	27-44-01-02
ETIM 9.0	EC002635

Report error on this page

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
