M16 Female panel mount connector, Contacts: 12 (12-a), shieldable, THT, IP40, front fastened

Illustration 09 0332 290 12 - M16 Female panel mount connector, Contacts: 12 (12-a), shieldable, THT, IP40, front fastened — Illustration

3D View 09 0332 290 12 - M16 Female panel mount connector, Contacts: 12 (12-a), shieldable, THT, IP40, front fastened — 3D View

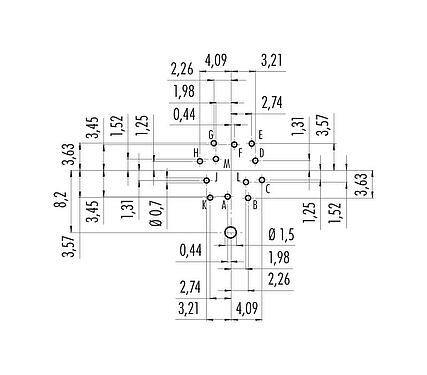

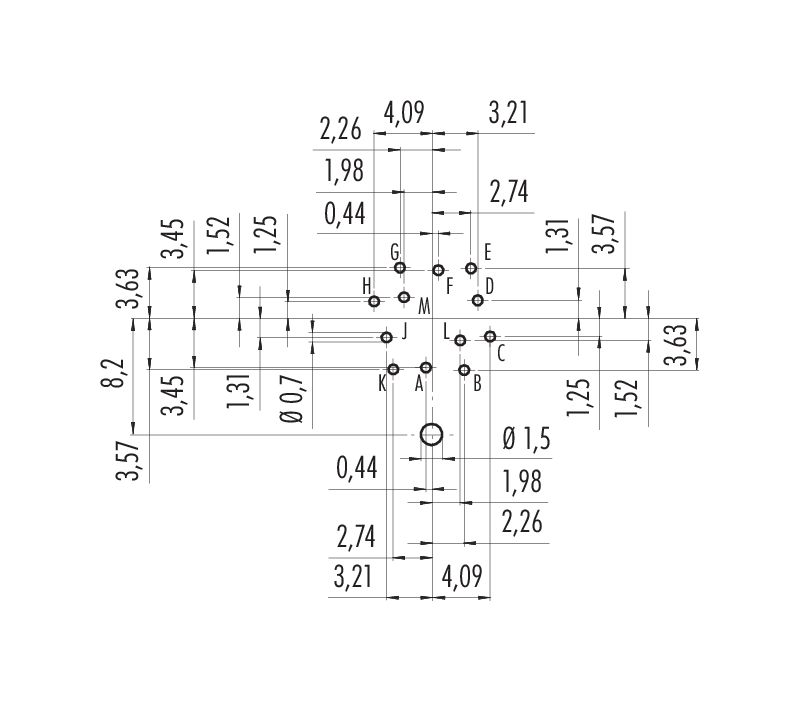

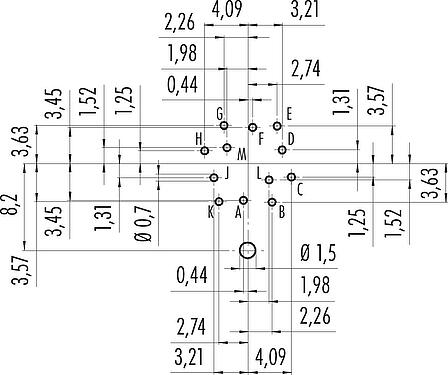

Conductor layout 09 0332 290 12 - M16 Female panel mount connector, Contacts: 12 (12-a), shieldable, THT, IP40, front fastened — Conductor layout

Component part drawing 09 0332 290 12 - M16 Female panel mount connector, Contacts: 12 (12-a), shieldable, THT, IP40, front fastened — Component part drawing

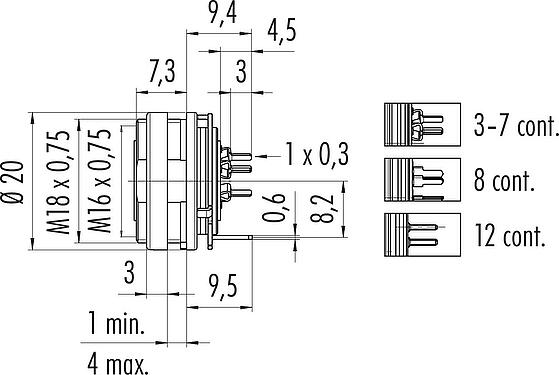

Scale drawing 09 0332 290 12 - M16 Female panel mount connector, Contacts: 12 (12-a), shieldable, THT, IP40, front fastened — Scale drawing

Assembly instructions / Panel cut-out 09 0332 290 12 - M16 Female panel mount connector, Contacts: 12 (12-a), shieldable, THT, IP40, front fastened — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) 09 0332 290 12 - M16 Female panel mount connector, Contacts: 12 (12-a), shieldable, THT, IP40, front fastened — Contact arrangement (Plug-in side)

Part no.	09 0332 290 12
Connector design	Female panel mount connector
Type standard	DIN EN 61076-2-106
Version	Connector socket straight
Connector locking system	screw
Termination	THT
Degree of protection	IP40
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 1000 Mating cycles
Weight (g)	9.31
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	60 V
Rated impulse voltage	500 V
Rated current	3,0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	I
Insulating material group	III
EMC compliance	shieldable
Shield connection	Shield pin

Housing material	Zinc die-cast nickel-plated
Contact body material	PBT (UL94 V-0)
Contact material	CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	5f45e1be-5a6a-4c3f-a61a-7cd810b43e41

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569

Report error on this page

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
