Miniature M16 IP67 connector

Series PDF (7 MB)
Accessory as PDF (311 KB)

These circular connectors according to DIN EN 61076-2-106, which are available as straight and angled cable versions as well as flange versions, comply with protection class IP67. The connectors are offered with 2 to 24 contacts with dip solder, crimp, screw clamp, solder and stranded wires and are also available with a moulded cable. Some versions are shieldable and users can expect more than 500 mating cycles. The 8-pole DIN versions are AWG compliant.

Miniature Connectors--Female panel mount connector_M16_4_FD_crimp
09 0124 700 06
M16 Female panel mount connector, Contacts: 6 (06-a), unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL
M16 IP67, series 723, Miniature Connectors
Details
Miniature Connectors--Female panel mount connector_M16_4_FD_crimp
09 0128 700 07
M16 Female panel mount connector, Contacts: 7 (07-a), unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL
M16 IP67, series 723, Miniature Connectors
Details
Miniature Connectors--Female panel mount connector_M16_4_FD_crimp
09 0174 700 08
M16 Female panel mount connector, Contacts: 8 (08-a), unshielded, crimping (Crimp contacts must be ordered separately), IP68, UL, AISG compliant
M16 IP67, series 723, Miniature Connectors
Details

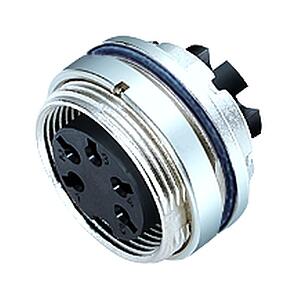

Miniature Connectors--Female panel mount connector_M16_IP67_4_FD_crimp_vv.(1)
09 0112 780 04
M16 Female panel mount connector, Contacts: 4 (04-a), unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL, front fastened
M16 IP67, series 723, Miniature Connectors
Details
Miniature Connectors--Female panel mount connector_M16_IP67_4_FD_crimp_vv.(1)
09 0116 780 05
M16 Female panel mount connector, Contacts: 5 (05-a), unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL, front fastened
M16 IP67, series 723, Miniature Connectors
Details
Miniature Connectors--Female panel mount connector_M16_IP67_4_FD_crimp_vv.(1)
09 0124 780 06
M16 Female panel mount connector, Contacts: 6 (06-a), unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL, front fastened
M16 IP67, series 723, Miniature Connectors
Details
Miniature Connectors--Female panel mount connector_M16_IP67_4_FD_crimp_vv.(1)
09 0128 780 07
M16 Female panel mount connector, Contacts: 7 (07-a), unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL, front fastened
M16 IP67, series 723, Miniature Connectors
Details
Miniature Connectors--Female panel mount connector_M16_IP67_4_FD_crimp_vv.(1)
09 0174 780 08
M16 Female panel mount connector, Contacts: 8 (08-a), unshielded, crimping (Crimp contacts must be ordered separately), IP68, UL, AISG compliant, front fastened
M16 IP67, series 723, Miniature Connectors
Details

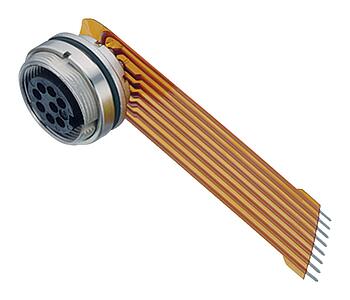

Miniature Connectors--Female panel mount connector_723_4_66_8
09 0128 65 07
M16 Female panel mount connector, Contacts: 7 (07-a), unshielded, THT, IP67, front fastened
M16 IP67, series 723, Miniature Connectors
Details
Miniature Connectors--Female panel mount connector_723_4_66_8
09 0174 65 08
M16 Female panel mount connector, Contacts: 8 (08-a), unshielded, THT, IP68, front fastened
M16 IP67, series 723, Miniature Connectors
Details

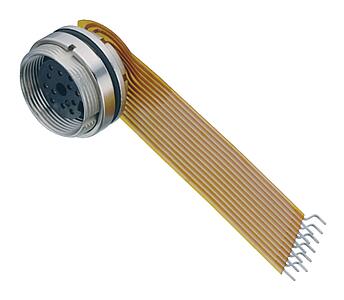

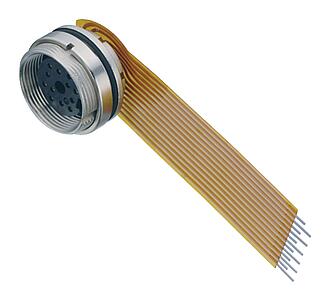

Miniature Connectors--Female panel mount connector_723_4_66_e
09 0132 65 12
M16 Female panel mount connector, Contacts: 12 (12-a), unshielded, THT, IP67, front fastened
M16 IP67, series 723, Miniature Connectors
Details
Miniature Connectors--Female panel mount connector_723_4_66
09 0132 66 12
M16 Female panel mount connector, Contacts: 12 (12-a), unshielded, THT, IP67, front fastened
M16 IP67, series 723, Miniature Connectors
Details
