M16 Female panel mount connector, Contacts: 8, shieldable, THR, IP67

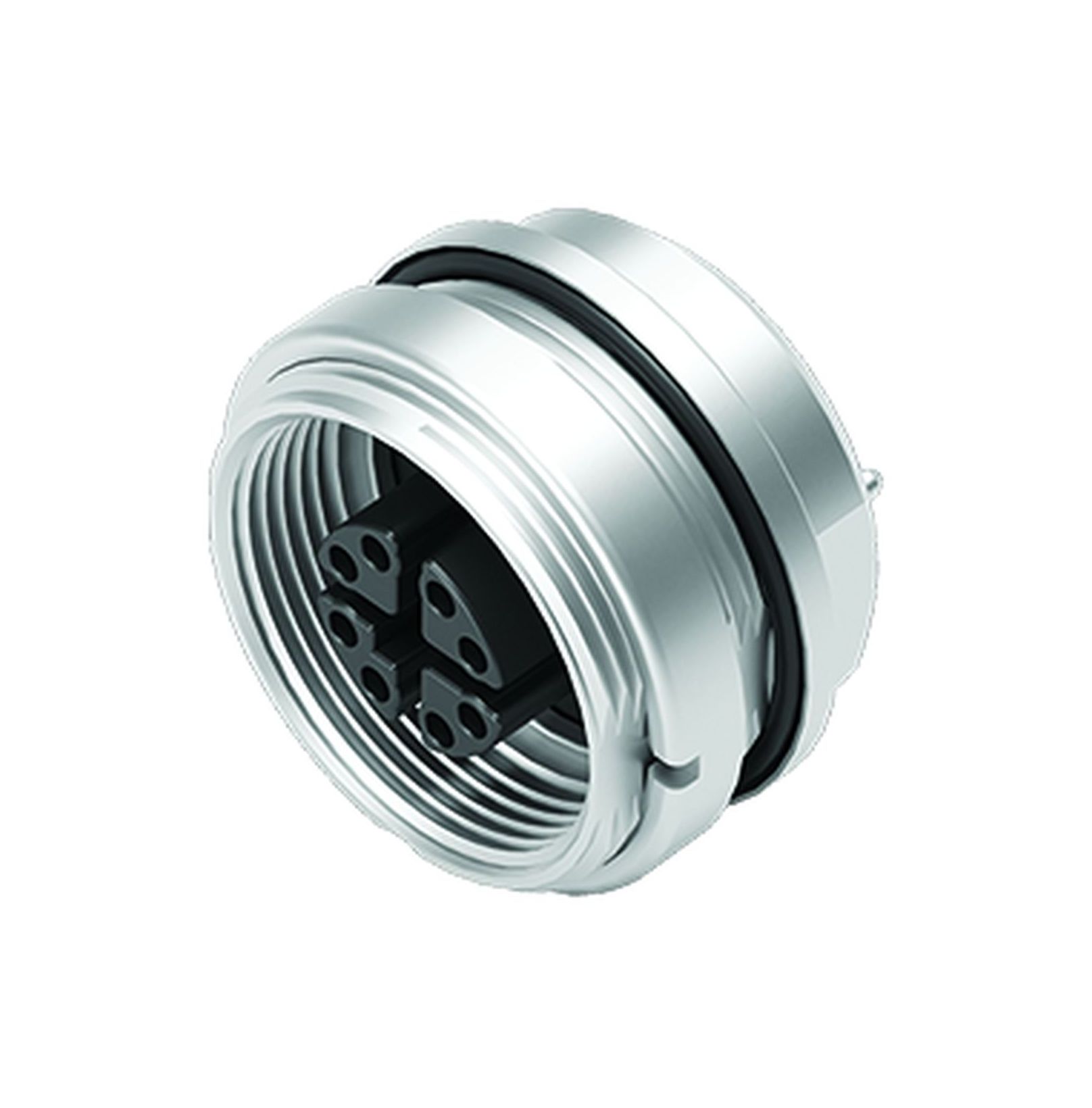

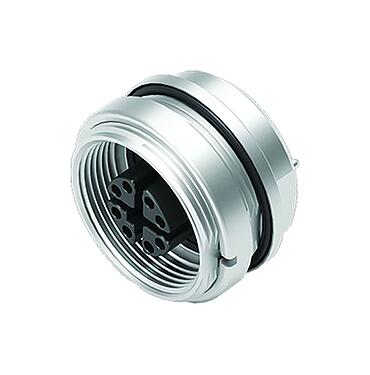

Illustration 99 4174 90 08 - M16 Female panel mount connector, Contacts: 8, shieldable, THR, IP67 — Illustration

3D View 99 4174 90 08 - M16 Female panel mount connector, Contacts: 8, shieldable, THR, IP67 — 3D View

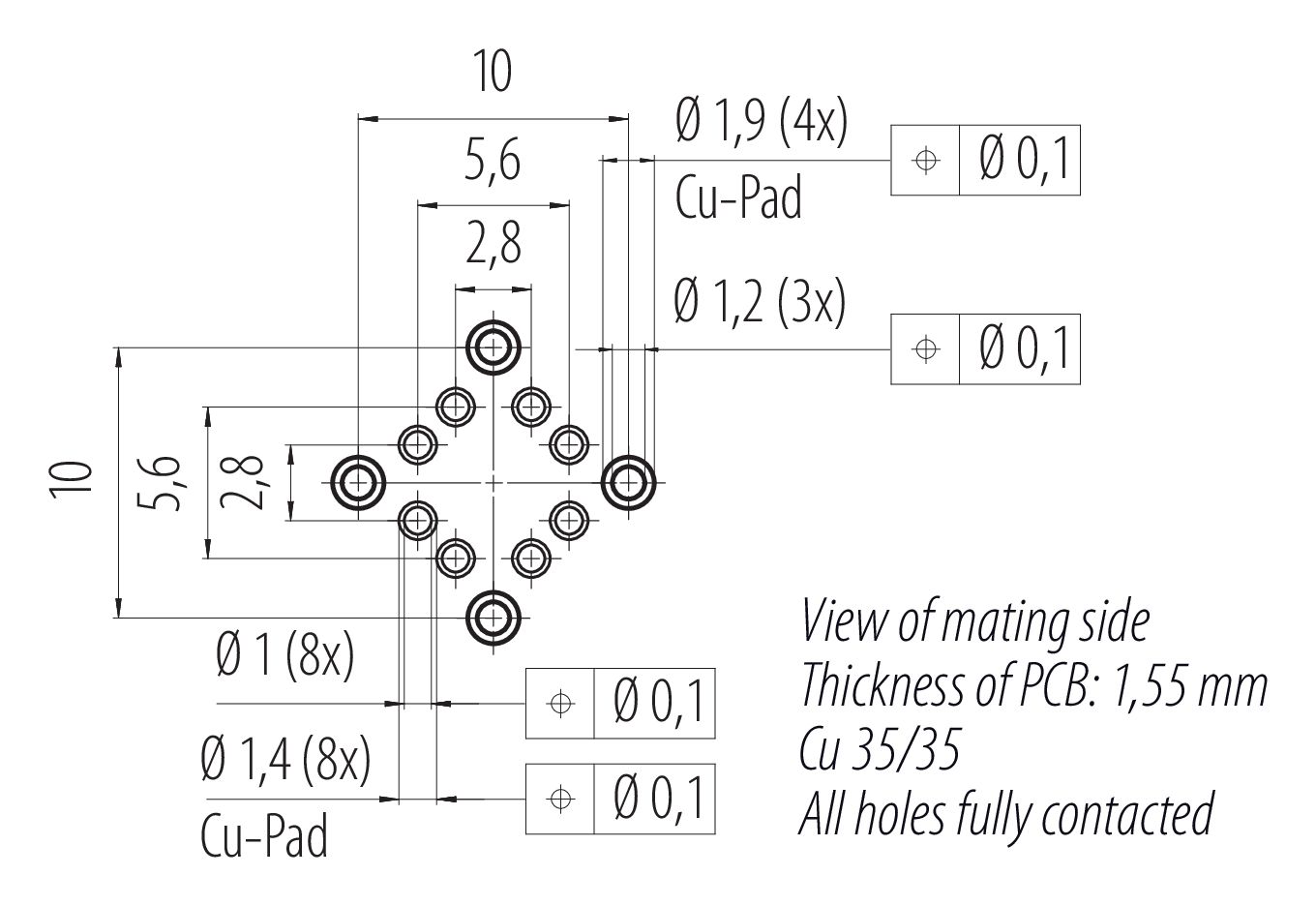

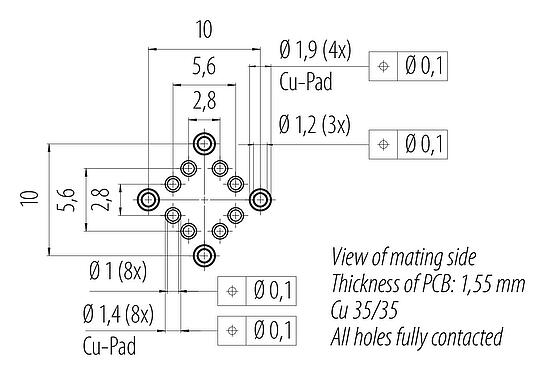

Conductor layout 99 4174 90 08 - M16 Female panel mount connector, Contacts: 8, shieldable, THR, IP67 — Conductor layout

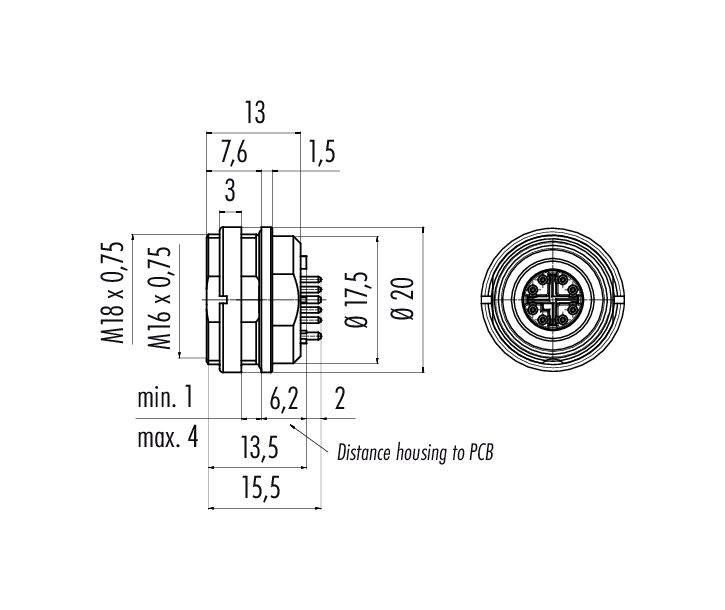

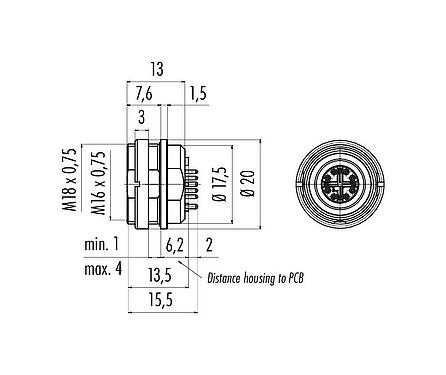

Scale drawing 99 4174 90 08 - M16 Female panel mount connector, Contacts: 8, shieldable, THR, IP67 — Scale drawing

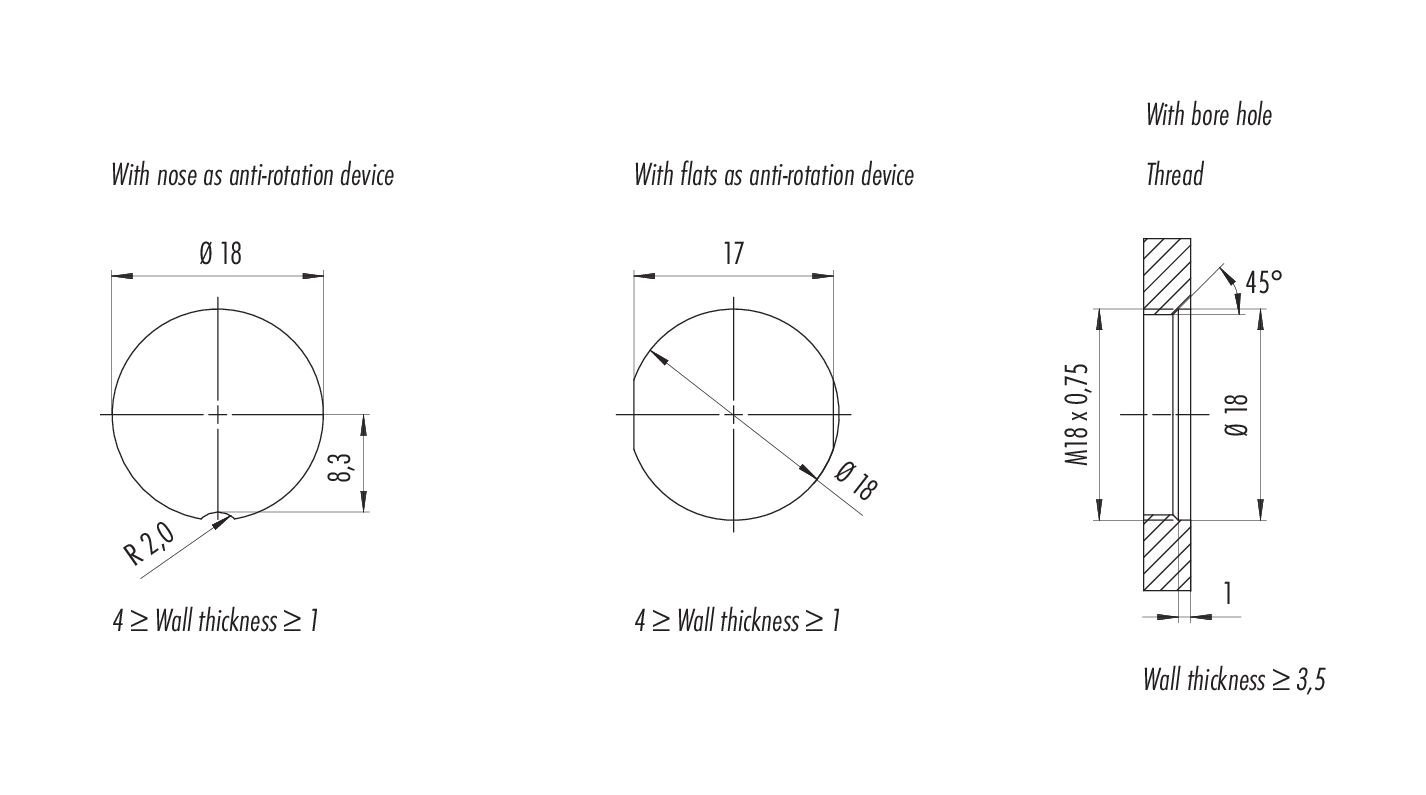

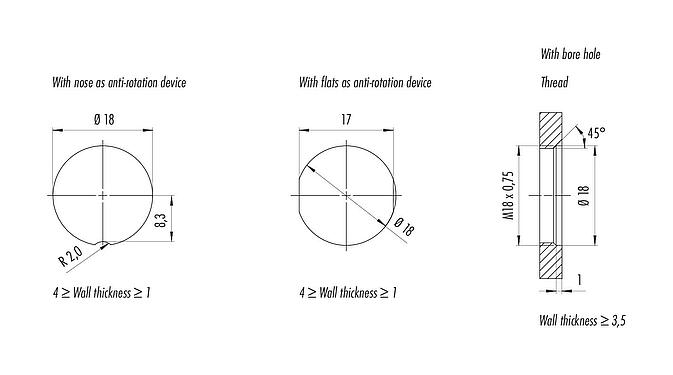

Assembly instructions / Panel cut-out 99 4174 90 08 - M16 Female panel mount connector, Contacts: 8, shieldable, THR, IP67 — Assembly instructions / Panel cut-out

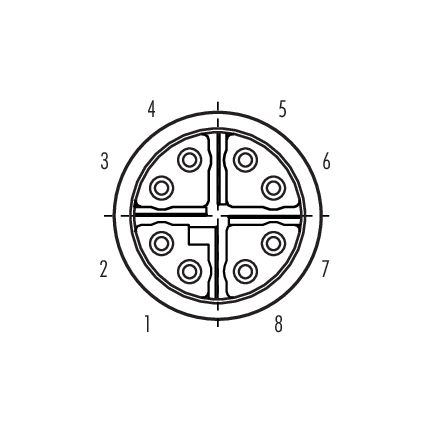

Contact arrangement (Plug-in side) 99 4174 90 08 - M16 Female panel mount connector, Contacts: 8, shieldable, THR, IP67 — Contact arrangement (Plug-in side)

Part no.	99 4174 90 08
Connector design	Female panel mount connector
Version	Connector socket straight
Connector locking system	screw
Termination	THR
Degree of protection	IP67
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	0.00
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	50 V (AC) / 60 V (DC)
Rated impulse voltage	800 V
Rated current	0.5 A
Insulation resistance	> 10⁸ Ω
Pollution degree	3
Insulating material group	III
EMC compliance	shieldable
Shield connection	Shield pin

REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	71eb941b-0202-4192-8ed7-c472456d57cb

eCl@ss 11.1	27-44-01-02
ETIM 9.0	EC002635

Report error on this page

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
