Snap-In 6-way distributor, Contacts: 5, unshielded, pluggable, IP67

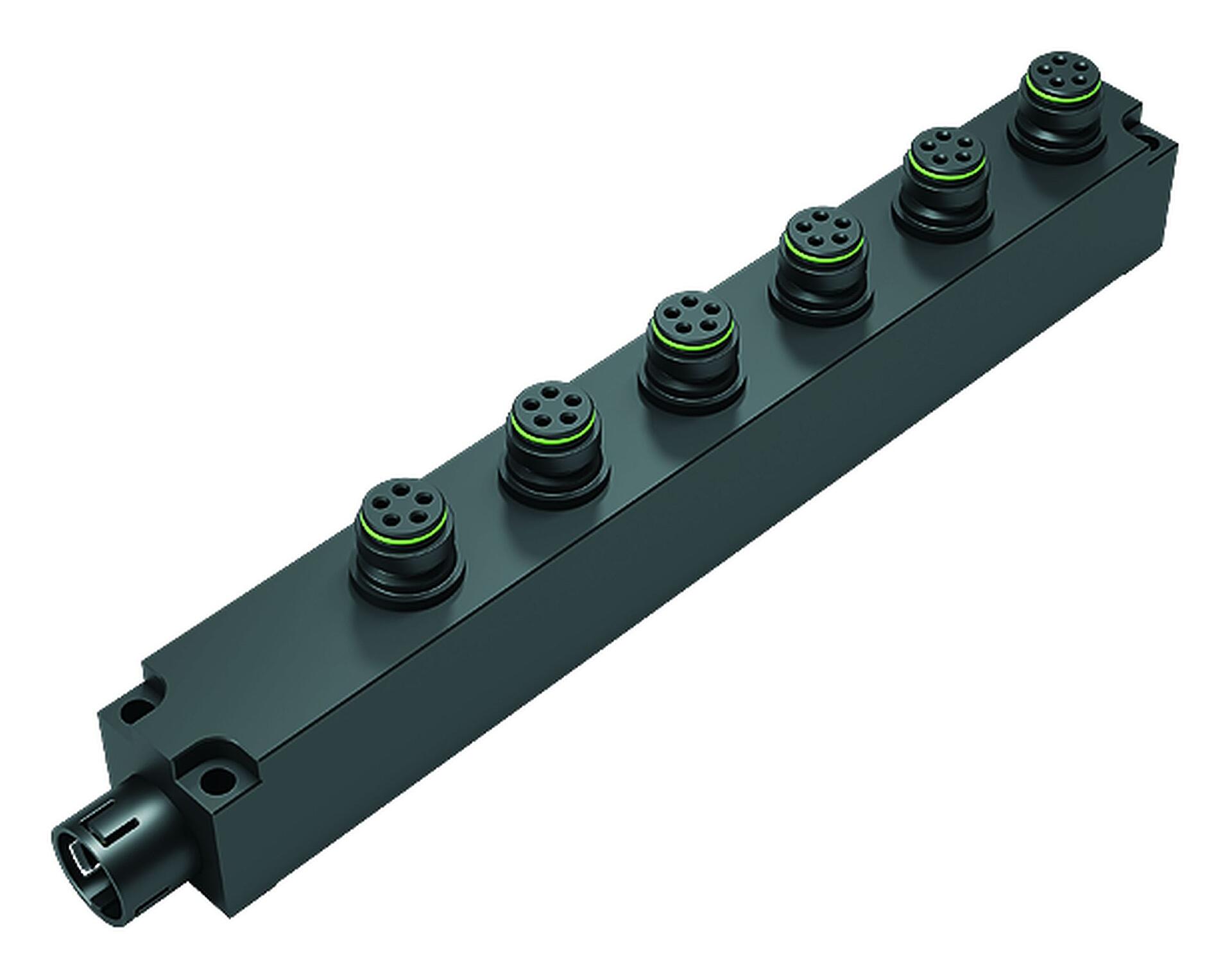

Illustration 72 9144 000 06 - Snap-In 6-way distributor, Contacts: 5, unshielded, pluggable, IP67 — Illustration

3D View 72 9144 000 06 - Snap-In 6-way distributor, Contacts: 5, unshielded, pluggable, IP67 — 3D View

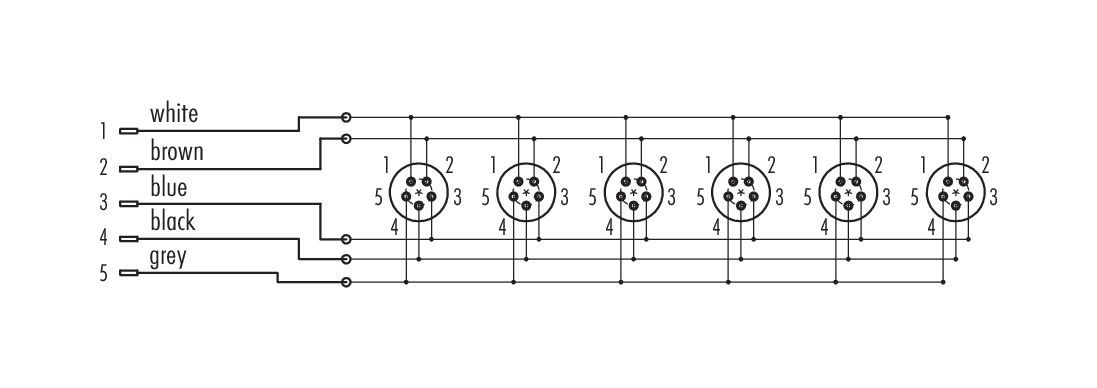

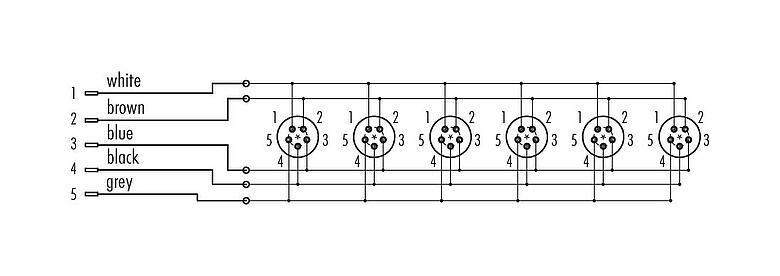

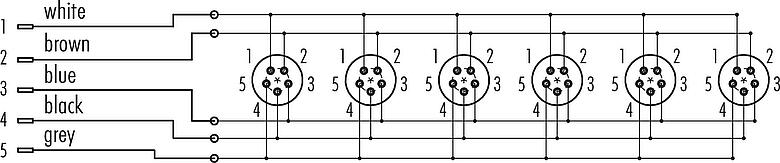

Pin assignment plans 72 9144 000 06 - Snap-In 6-way distributor, Contacts: 5, unshielded, pluggable, IP67 — Pin assignment plans

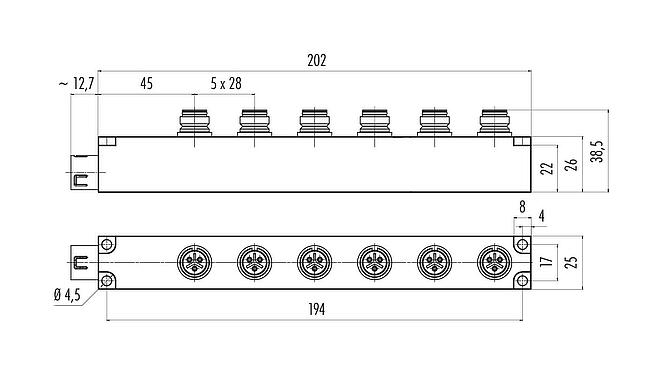

Scale drawing 72 9144 000 06 - Snap-In 6-way distributor, Contacts: 5, unshielded, pluggable, IP67 — Scale drawing

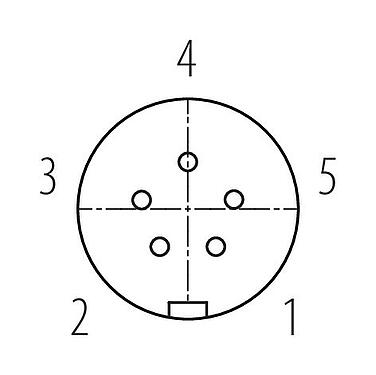

Contact arrangement (Plug-in side) 72 9144 000 06 - Snap-In 6-way distributor, Contacts: 5, unshielded, pluggable, IP67 — Contact arrangement (Plug-in side)

Part no.	72 9144 000 06
Connector design	6-way distributor
Version	Distribution Blocks
Connector locking system	snap-in
Termination	pluggable
Degree of protection	IP67
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	212.95
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	125 V
Rated impulse voltage	1500 V
Rated current	5.0 A
Insulation resistance	> 10⁸ Ω
Pollution degree	2
Insulating material group	II
EMC compliance	unshielded

Housing material	PA66 (UL94 HB)
Contact body material	PA black
Contact material	CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	31bd88f0-8832-4c8b-a3a3-6db803888637

eCl@ss 11.1	27-06-03-11
ETIM 9.0	EC002638

Low Voltage Directive	2014/35/EU (EN 60204-1:2018;EN 60529:1991)
RoHS Directive	2011/65/EU (EN 50581:2012)
