Part no.: 79 9149 120 03
Snap-In Male cable connector, Contacts: 3, moulded on the cable, IP67, VDE, PUR, black, 3 x 0.75 mm², 2 m
Snap-In IP67, series 720, Miniature Connectors
3D View(Click to activate)

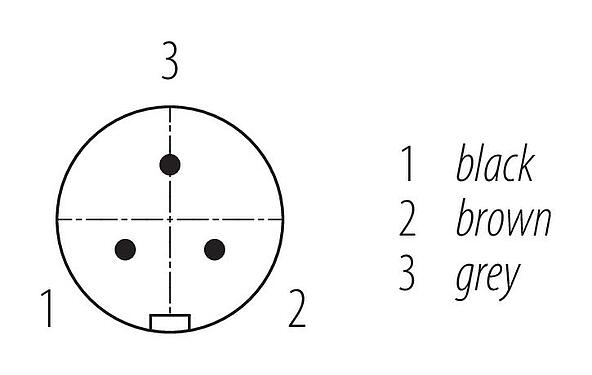

General features
Moreless| Part no. | 79 9149 120 03 |
| Connector design | Male cable connector |
| Cable length | 2 m (Standard 2 m and 5 m. Other lengths are available on request.) |
| Connector locking system | snap-in |
| Termination | moulded on the cable |
| Degree of protection | IP67 |
| Cross-sectional area | 0.75 mm² |
| Temperature range from/to | -25 °C / 70 °C |
| Mechanical operation | > 500 Mating cycles |
| Weight (g) | 144.00 |
| Customs tariff number | 85444290 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 250 V |
| Rated impulse voltage | 2500 V |
| Rated current | 7.0 A |
| Insulation resistance | > 1010 Ω |
| Pollution degree | 2 |
| Overvoltage category | II |
| Insulating material group | II |
| Voltage | 2950 V DC |
Material
Moreless| Housing material | PUR |
| Contact body material | PA66 (UL94 V0) |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | b63d22e6-657a-4188-8581-936be4559fe1 |
Authorization/approvals
Moreless| Approvals | VDE |
Classifications
Moreless| eCl@ss 11.1 | 27-06-03-11 |
| ETIM 9.0 | EC002638 |
Cable data
Moreless| Structure of the cable | |
| Cable diameter | 6.8 mm |
| Cross section | 3 x 0.75 mm² |
| Sheath material | PUR |
| Single-lead insulation | EPK |
| Single-lead structure | 24 x 0.20 mm |
| Cable color | black |
| Electrical properties | |
| Conductor resistance | 26.7 Ω/Km (20°C) |
| Mechanical properties | |
| Bending radius, fixed cable | ≥ 5 x Ø |
| Bending radius, moving cable | ≥ 10 x Ø |
| Thermal properties | |
| Temperature range cable fixed from/to | -40 °C / 90 °C |
| Other features | |
| Halogen free | yes |
Security notices
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
