79 9180 000 05 | binder Miniatur Snap-In Zweifachverteiler, Y-Verteiler, Contacts: 5, unshielded, pluggable, IP67, UL, VDE

Menu

Menu

Products
Miniature connectors
Snap-in IP67
Snap-In Twin distributor, Y-distributor, Contacts: 5, unshielded, pluggable, IP67, UL, VDE

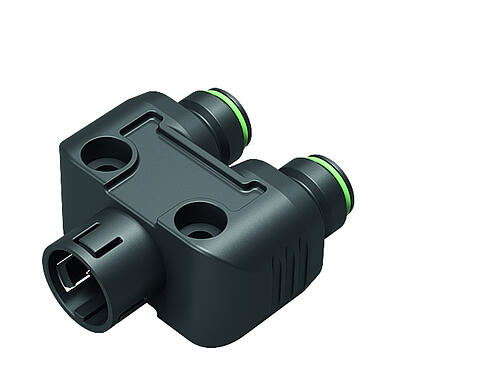

Illustration 79 9180 000 05 - Snap-In Twin distributor, Y-distributor, Contacts: 5, unshielded, pluggable, IP67, UL, VDE — Illustration

3D View 79 9180 000 05 - Snap-In Twin distributor, Y-distributor, Contacts: 5, unshielded, pluggable, IP67, UL, VDE — 3D View

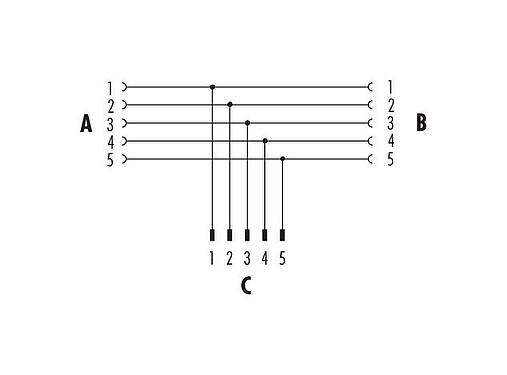

Pin assignment plans 79 9180 000 05 - Snap-In Twin distributor, Y-distributor, Contacts: 5, unshielded, pluggable, IP67, UL, VDE — Pin assignment plans

Scale drawing 79 9180 000 05 - Snap-In Twin distributor, Y-distributor, Contacts: 5, unshielded, pluggable, IP67, UL, VDE — Scale drawing

Contact arrangement (Plug-in side) 79 9180 000 05 - Snap-In Twin distributor, Y-distributor, Contacts: 5, unshielded, pluggable, IP67, UL, VDE — Contact arrangement (Plug-in side)

Part no.	79 9180 000 05
Connector design	Twin distributor, Y-distributor
Version	Twin distributors
Connector locking system	snap-in
Termination	pluggable
Degree of protection	IP67
Temperature range from/to	-25 °C / 85 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	35.00
Customs tariff number	85444290
Country of Origin	DE

Rated voltage	125 V
Rated impulse voltage	1500 V
Rated current	5.0 A
Pollution degree	2
Overvoltage category	II
Insulating material group	II
EMC compliance	unshielded

Housing material	PA
Contact body material	PA
Contact material	CuZn (brass) / CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	460ef7e0-98cf-4528-8d33-25548338545a

Approvals	UL, VDE

eCl@ss 11.1	27-06-03-11
ETIM 9.0	EC002638

Low Voltage Directive	2014/35/EU (EN 60204-1:2018;EN 60529:1991)
RoHS Directive	2011/65/EU (EN 50581:2012)
