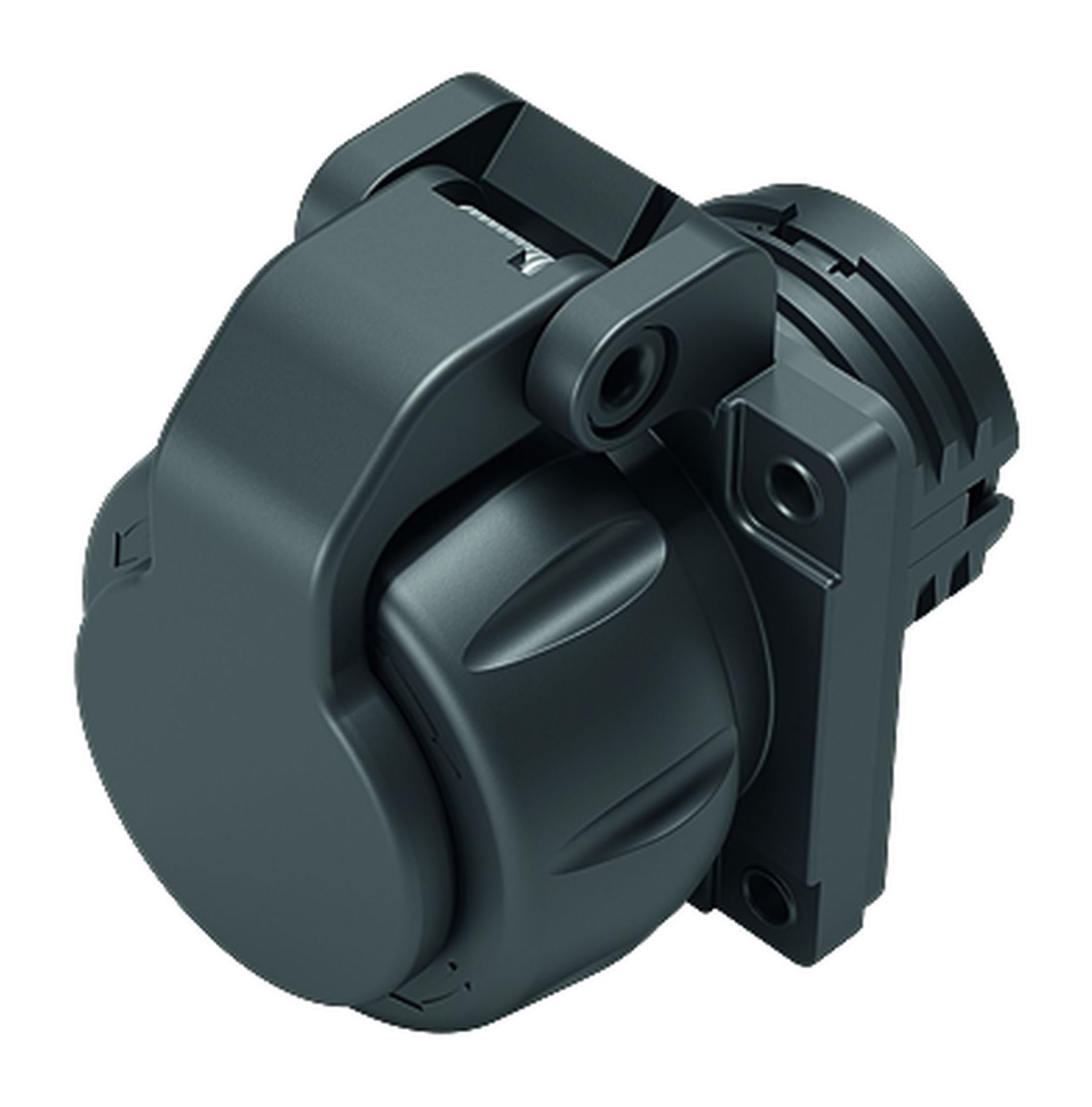

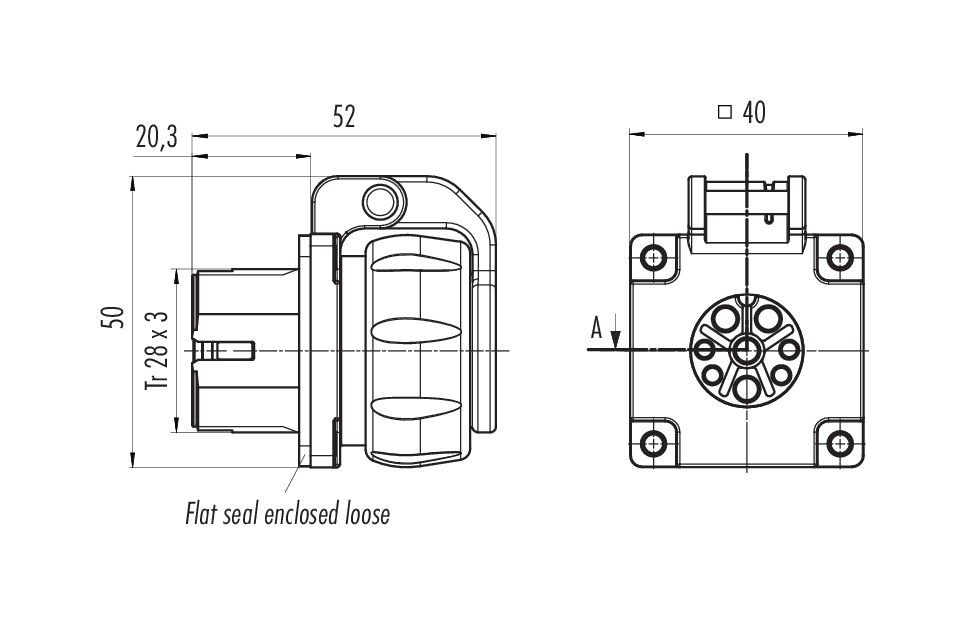

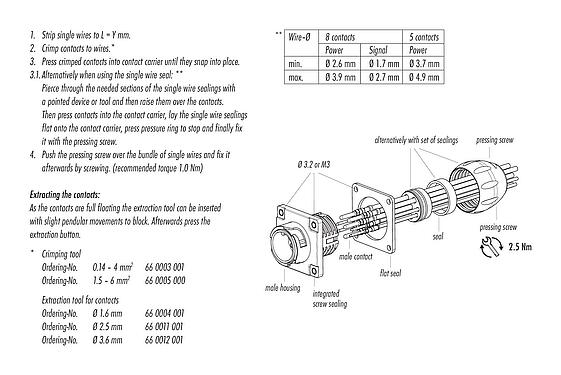

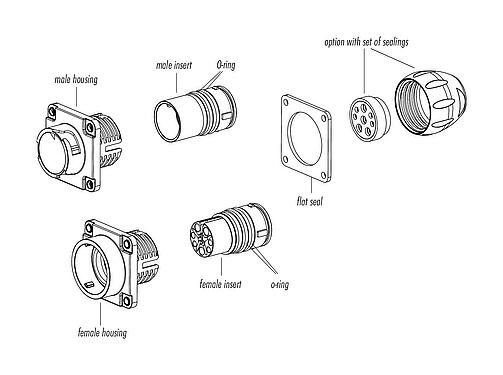

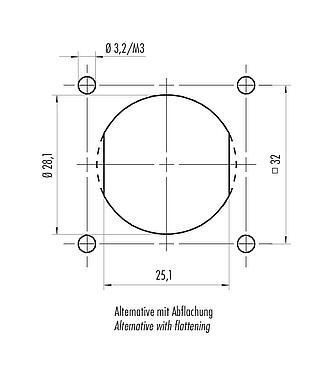

  4. Bayonet Female panel mount connector, Contacts: 4+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL, VDE
Part no.: 09 6492 200 05

Bayonet Female panel mount connector, Contacts: 4+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL, VDE

Bayonet HEC, series 696, Power Connectors

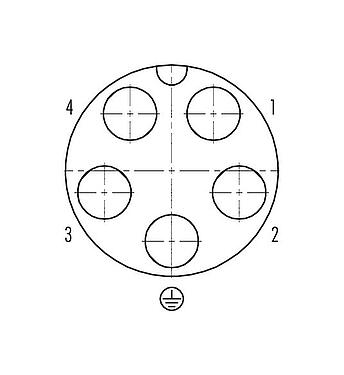

Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 09 6492 200 05
Connector design Female panel mount connector
Version Connector socket straight
Connector locking system Bayonet
Termination crimping (Crimp contacts must be ordered separately)
Degree of protection IP68/IP69K
Cross-sectional area 2.50-6.00 mm² / AWG 14-10
Temperature range from/to -40 °C / 100 °C
Mechanical operation > 1000 Mating cycles
Weight (g) 50.26
Customs tariff number 85369010
Country of Origin DE
Rated voltage 600 V
Rated impulse voltage 6000 V
Rated current 32.0 A
Insulation resistance > 108 Ω
Pollution degree 3
Overvoltage category III
Insulating material group I
EMC compliance unshielded
Housing material PA
Contact body material PA
Contact plating depending on crimp contact (accessory)
REACH SVHC None (No pollutants)
SCIP number SCIP-number not available
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
