Bayonet Female panel mount connector, Contacts: 3, shieldable, solder, IP40

Illustration 09 0058 70 03 - Bayonet Female panel mount connector, Contacts: 3, shieldable, solder, IP40 — Illustration

3D View 09 0058 70 03 - Bayonet Female panel mount connector, Contacts: 3, shieldable, solder, IP40 — 3D View

Component part drawing 09 0058 70 03 - Bayonet Female panel mount connector, Contacts: 3, shieldable, solder, IP40 — Component part drawing

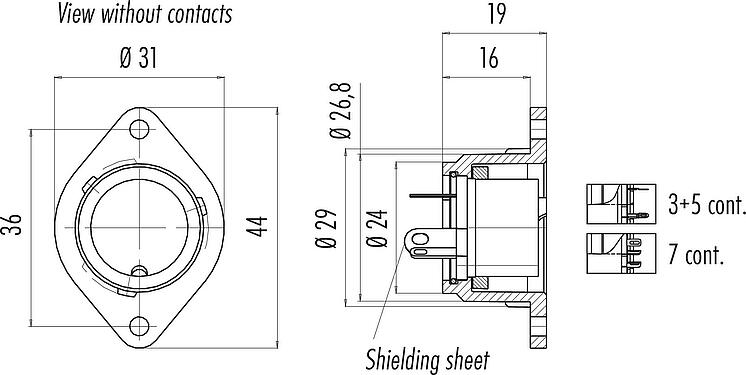

Scale drawing 09 0058 70 03 - Bayonet Female panel mount connector, Contacts: 3, shieldable, solder, IP40 — Scale drawing

Assembly instructions / Panel cut-out 09 0058 70 03 - Bayonet Female panel mount connector, Contacts: 3, shieldable, solder, IP40 — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) 09 0058 70 03 - Bayonet Female panel mount connector, Contacts: 3, shieldable, solder, IP40 — Contact arrangement (Plug-in side)

Part no.	09 0058 70 03
Connector design	Female panel mount connector
Version	Connector socket straight
Connector locking system	Bayonet
Termination	solder
Degree of protection	IP40
Cross-sectional area	2.50 mm² / AWG 14
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 50 Mating cycles
Weight (g)	13.84
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	250 V
Rated impulse voltage	2500 V
Rated current	10.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	II
Insulating material group	III
EMC compliance	shieldable
Shield connection	Shielding plate

Housing material	PBT
Contact body material	PBT (UL94 V-0)
Contact material	CuSn (bronze)
Contact plating	Ag (silver)
REACH SVHC	None (No pollutants)
SCIP number	SCIP-number not available

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569

Report error on this page

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
To lock the cable connector to the device connector, we recommend tightening the threaded ring to 1.25 Nm. A suitable torque wrench is available as an accessory (order no. 07 0082 000).
