M25 Male panel mount connector, Contacts: 3, shieldable, solder, IP40

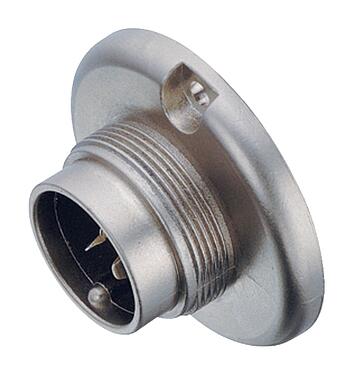

Illustration 09 0035 00 03 - M25 Male panel mount connector, Contacts: 3, shieldable, solder, IP40 — Illustration

3D View 09 0035 00 03 - M25 Male panel mount connector, Contacts: 3, shieldable, solder, IP40 — 3D View

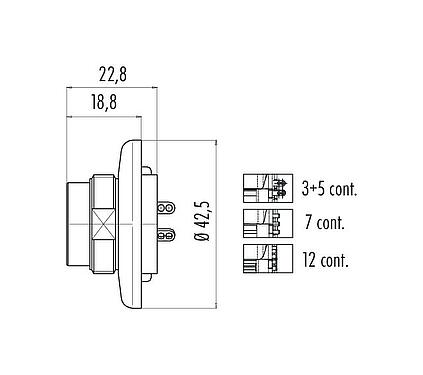

Scale drawing 09 0035 00 03 - M25 Male panel mount connector, Contacts: 3, shieldable, solder, IP40 — Scale drawing

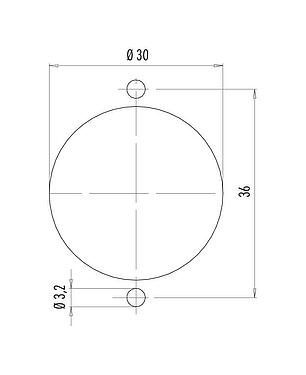

Assembly instructions / Panel cut-out 09 0035 00 03 - M25 Male panel mount connector, Contacts: 3, shieldable, solder, IP40 — Assembly instructions / Panel cut-out

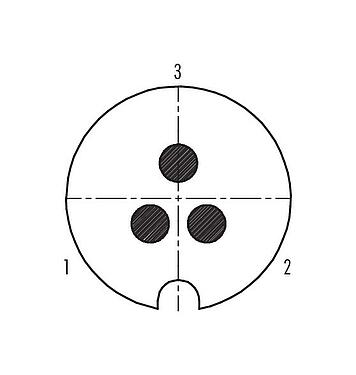

Contact arrangement (Plug-in side) 09 0035 00 03 - M25 Male panel mount connector, Contacts: 3, shieldable, solder, IP40 — Contact arrangement (Plug-in side)

Part no.	09 0035 00 03
Connector design	Male panel mount connector
Version	Connector pin straight
Connector locking system	screw
Termination	solder
Degree of protection	IP40
Cross-sectional area	1.50 mm² / AWG 16
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	45.23
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	250 V
Rated impulse voltage	2500 V
Rated current	10.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	II
Insulating material group	III
EMC compliance	shieldable
Shield connection	Shield on the housing

Housing material	GD-AL eloxiert
Contact body material	PBT (UL94 V-0)
Contact material	CuZn (brass)
Contact plating	Ag (silver)
REACH SVHC	None (No pollutants)
SCIP number	SCIP-number not available

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569

Report error on this page

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
To lock the cable connector to the device connector, we recommend tightening the threaded ring to 1.25 Nm. A suitable torque wrench is available as an accessory (order no. 07 0082 000).
