Part no.: 09 4224 150 04

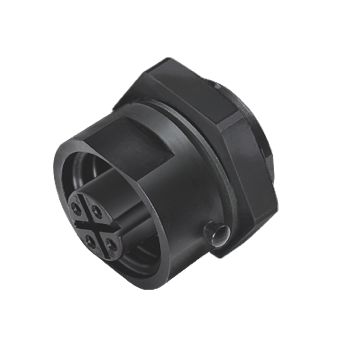

RD24 Female panel mount connector, Contacts: 3+PE, unshielded, screw clamp, IP67, UL, ESTI+, VDE, central fixing
RD24, series 693, Power Connectors
3D View(Click to activate)
General features
Moreless| Part no. | 09 4224 150 04 |
| Connector design | Female panel mount connector |
| Version | Connector socket straight |
| Connector locking system | Central bolt |
| Termination | screw clamp |
| Degree of protection | IP67 |
| Cross-sectional area | max. 2.50 mm² / AWG 14 |
| Temperature range from/to | -40 °C / 100 °C |
| Mechanical operation | > 500 Mating cycles |
| Weight (g) | 22.80 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 400 V (600 V UL) |
| Rated impulse voltage | 6000 V |
| Rated current | 16 A (12 A UL) |
| Insulation resistance | ≥ 1010 Ω |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | III |
| EMC compliance | unshielded |
Material
Moreless| Contact body material | PA |
| Contact material | CuZn (brass) |
| Contact plating | Ag (silver) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 4265e0e5-b10b-45a4-a7b7-e9d29db2298a |
Authorization/approvals
Moreless| Approvals | UL, ESTI+, VDE |
Classifications
Moreless| eCl@ss 11.1 | 27-44-01-09 |
| ETIM 9.0 | EC003569 |
Security notices
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
