M9 Female panel mount connector, Contacts: 7, unshielded, THT, IP40

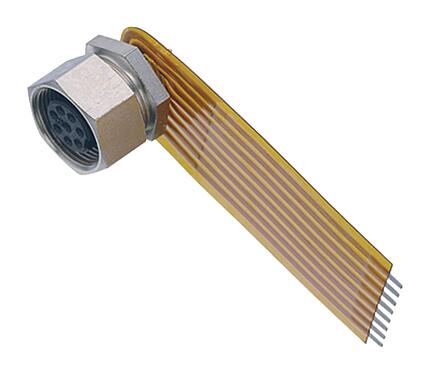

Illustration 09 0478 65 07 - M9 Female panel mount connector, Contacts: 7, unshielded, THT, IP40 — Illustration

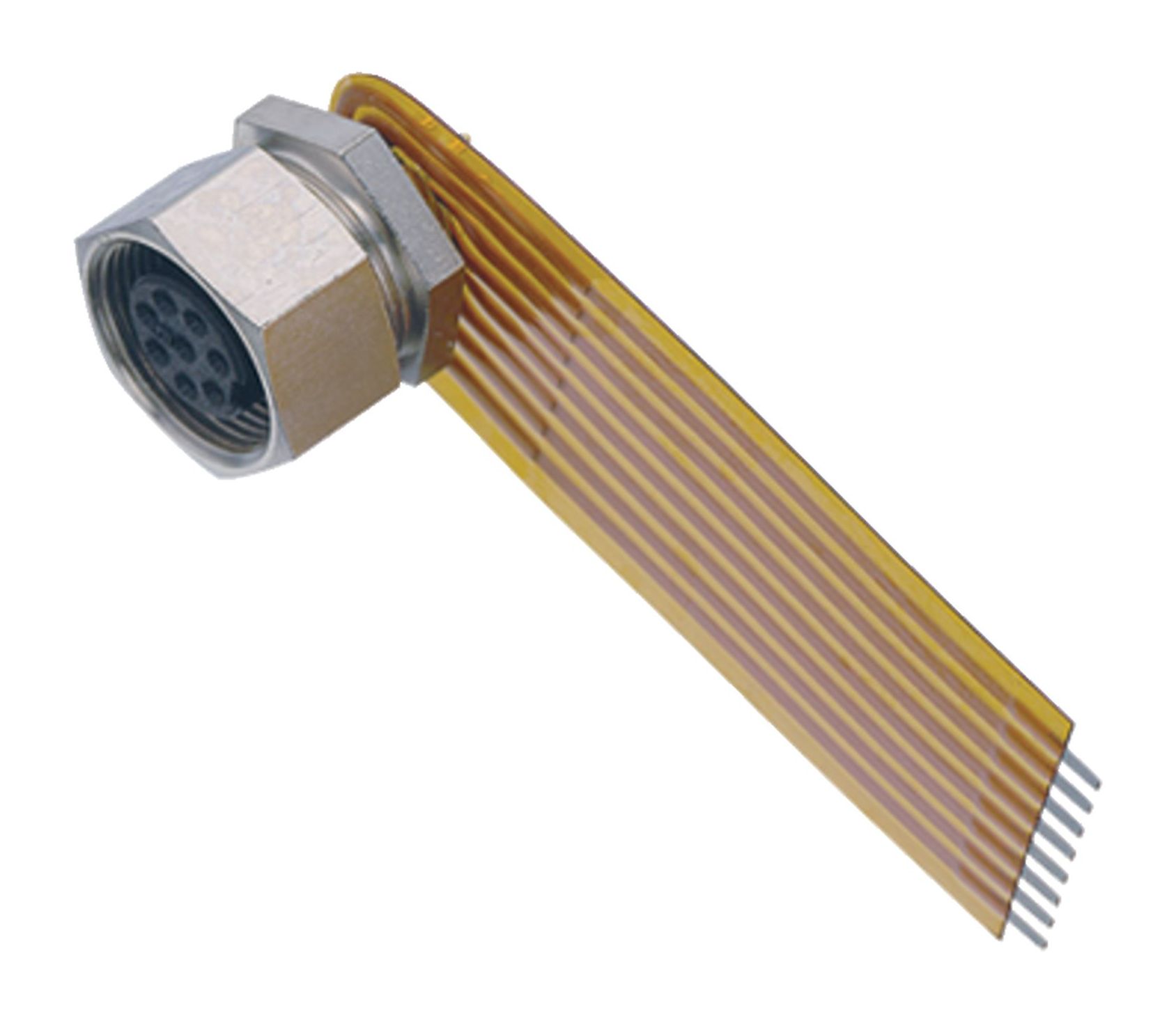

3D View 09 0478 65 07 - M9 Female panel mount connector, Contacts: 7, unshielded, THT, IP40 — 3D View

Conductor layout 09 0478 65 07 - M9 Female panel mount connector, Contacts: 7, unshielded, THT, IP40 — Conductor layout

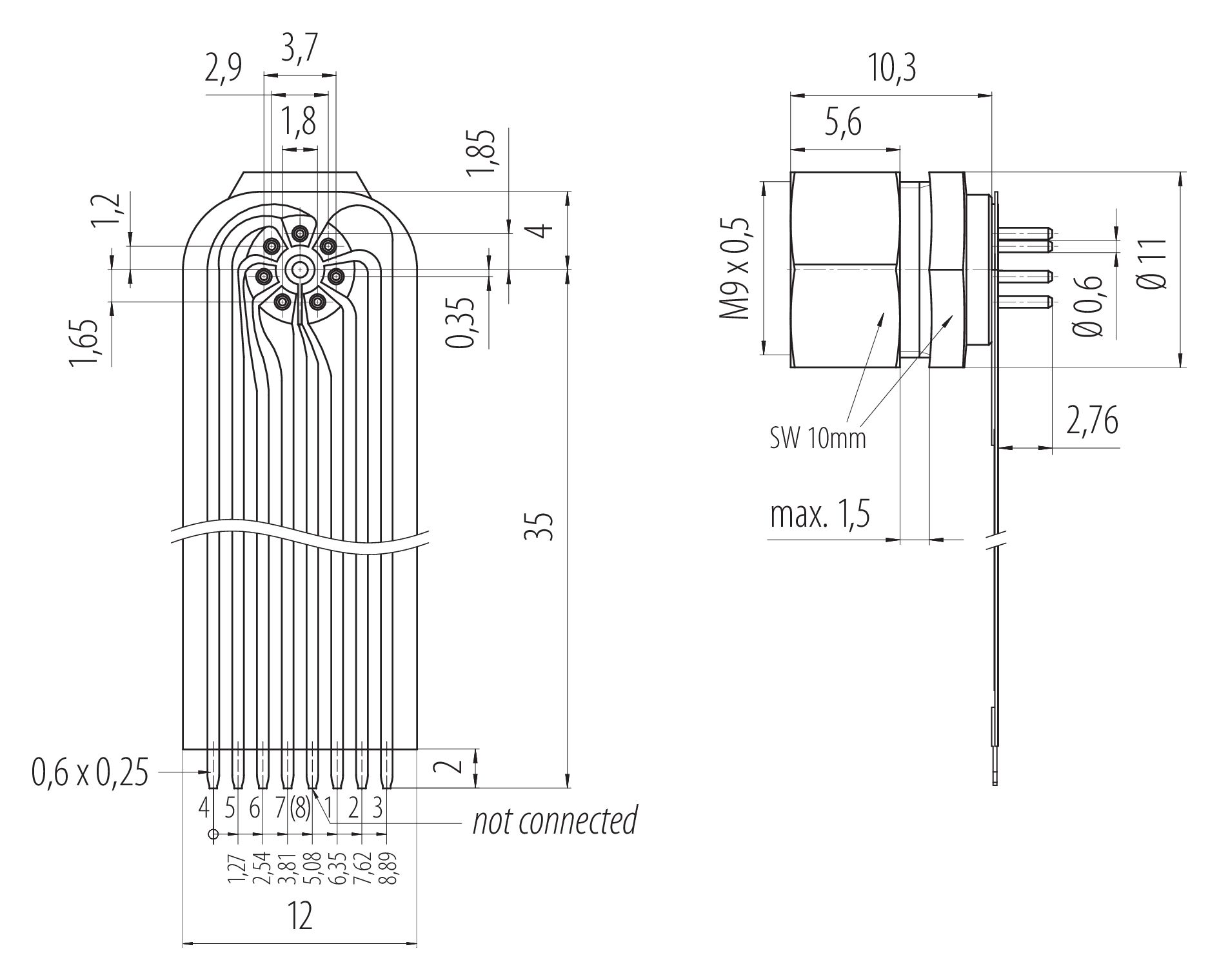

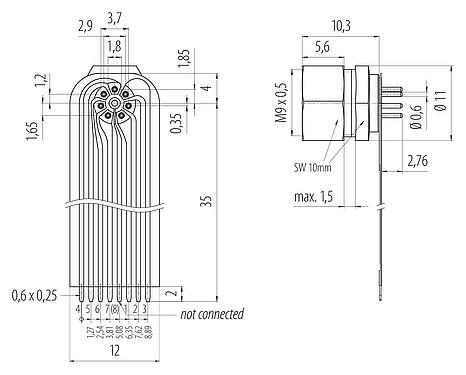

Connection & dimensions 09 0478 65 07 - M9 Female panel mount connector, Contacts: 7, unshielded, THT, IP40 — Connection & dimensions

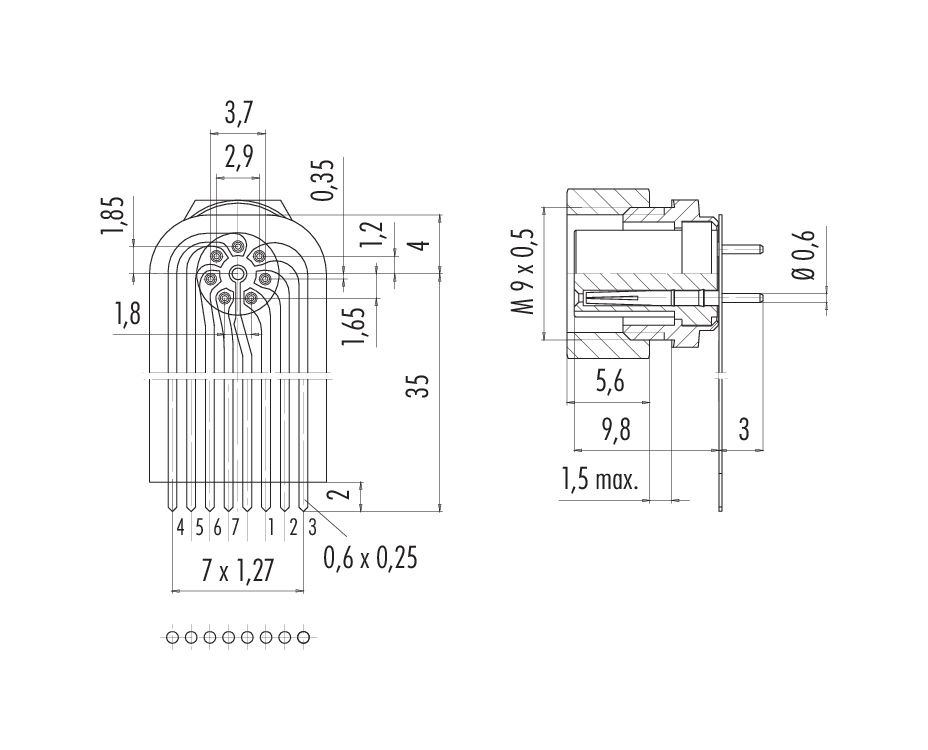

Scale drawing 09 0478 65 07 - M9 Female panel mount connector, Contacts: 7, unshielded, THT, IP40 — Scale drawing

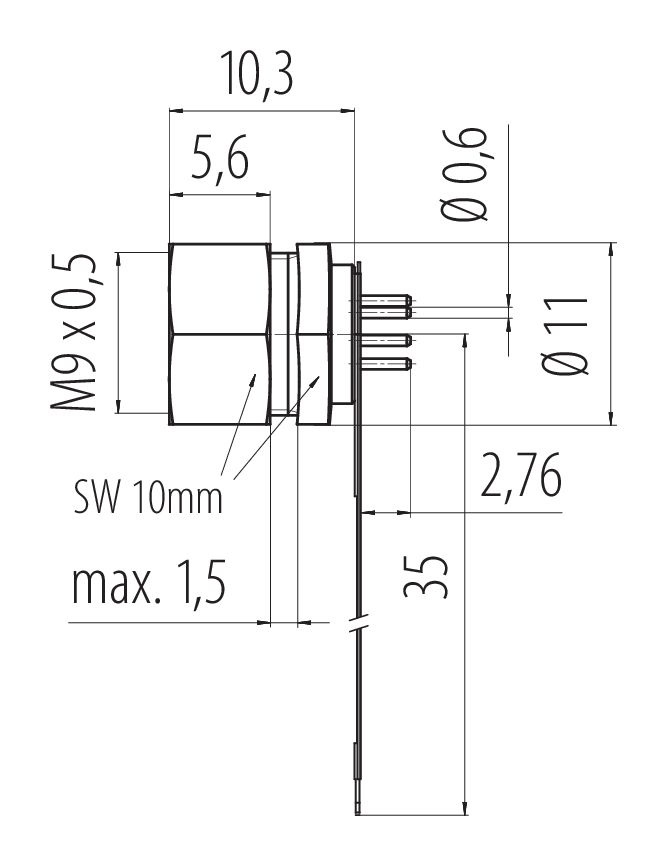

Assembly instructions / Panel cut-out 09 0478 65 07 - M9 Female panel mount connector, Contacts: 7, unshielded, THT, IP40 — Assembly instructions / Panel cut-out

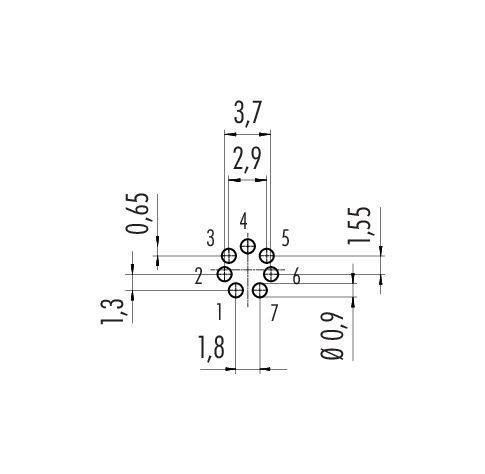

Contact arrangement (Plug-in side) 09 0478 65 07 - M9 Female panel mount connector, Contacts: 7, unshielded, THT, IP40 — Contact arrangement (Plug-in side)

Part no.	09 0478 65 07
Connector design	Female panel mount connector
Version	Connector socket straight
Connector locking system	screw
Termination	THT
Degree of protection	IP40
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	3.31
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	125 V
Rated impulse voltage	1500 V
Rated current	1.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	II
Insulating material group	III
EMC compliance	unshielded

Contact body material	PA (UL94 V-0)
Contact material	CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	78f1927c-1c34-419e-8eb1-e7e36e013245

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569

Report error on this page

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
