M9 Female panel mount connector, Contacts: 8, unshielded, THT

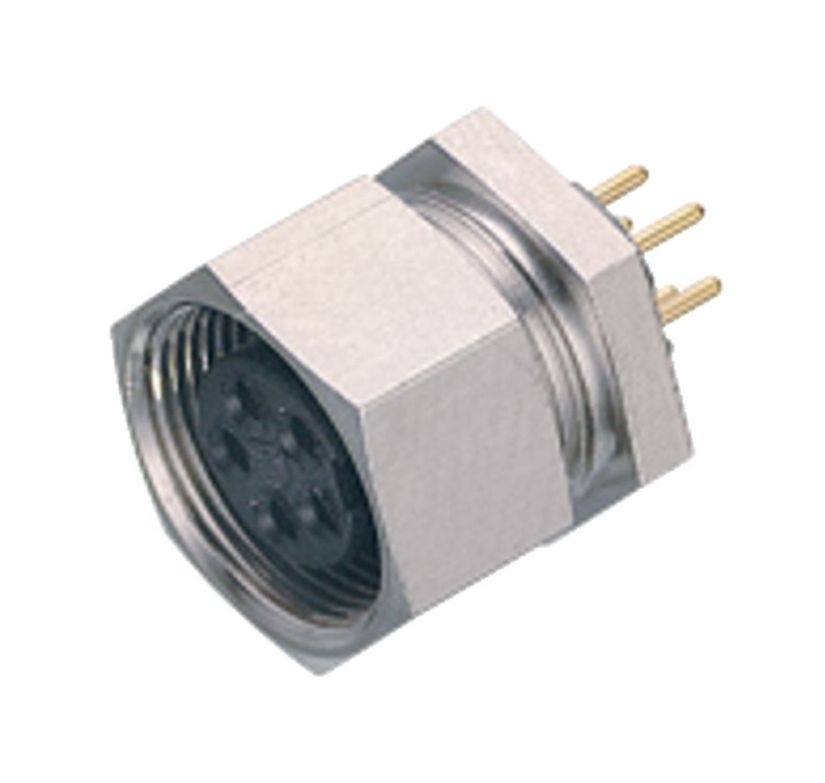

Illustration 09 0482 22 08 - M9 Female panel mount connector, Contacts: 8, unshielded, THT — Illustration

3D View 09 0482 22 08 - M9 Female panel mount connector, Contacts: 8, unshielded, THT — 3D View

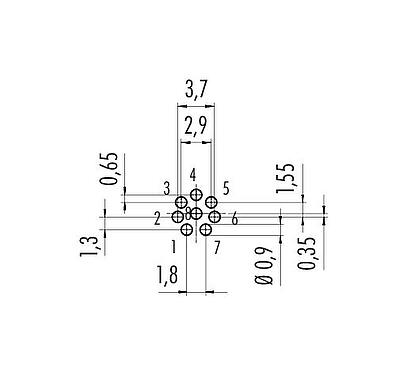

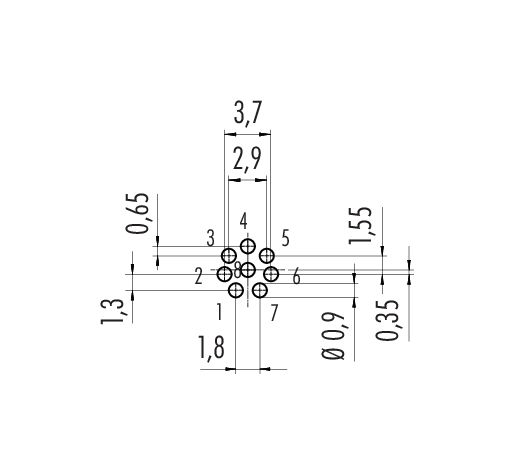

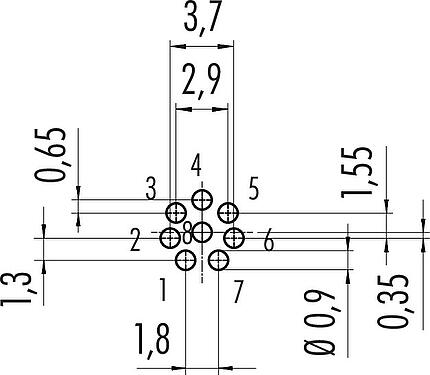

Conductor layout 09 0482 22 08 - M9 Female panel mount connector, Contacts: 8, unshielded, THT — Conductor layout

Component part drawing 09 0482 22 08 - M9 Female panel mount connector, Contacts: 8, unshielded, THT — Component part drawing

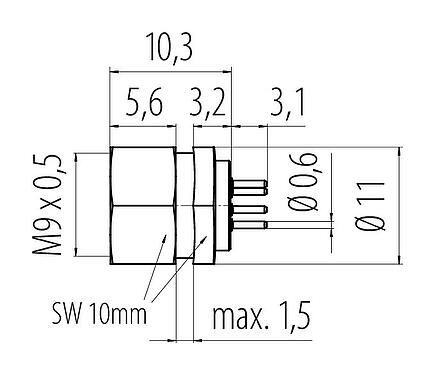

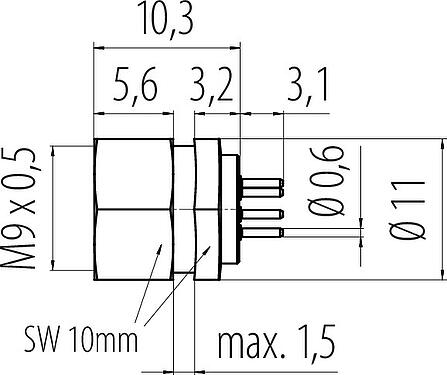

Scale drawing 09 0482 22 08 - M9 Female panel mount connector, Contacts: 8, unshielded, THT — Scale drawing

Assembly instructions / Panel cut-out 09 0482 22 08 - M9 Female panel mount connector, Contacts: 8, unshielded, THT — Assembly instructions / Panel cut-out

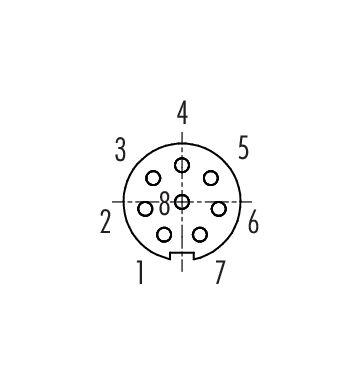

Contact arrangement (Plug-in side) 09 0482 22 08 - M9 Female panel mount connector, Contacts: 8, unshielded, THT — Contact arrangement (Plug-in side)

Part no.	09 0482 22 08
Connector design	Female panel mount connector
Version	Connector socket straight
Termination	THT
Weight (g)	2.98
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	125 V
Rated impulse voltage	1500 V
Rated current	1.0 A
Insulating material group	III
EMC compliance	unshielded

REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	01217c3a-6d57-404f-9465-460007fba9b0

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569

Report error on this page

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
