M9 Male angled connector, Contacts: 7, shielded, moulded on the cable, IP67, PUR, black, 8 x 0.14 mm², 2 m

Illustration 79 1421 72 07 - M9 Male angled connector, Contacts: 7, shielded, moulded on the cable, IP67, PUR, black, 8 x 0.14 mm², 2 m — Illustration

3D View 79 1421 72 07 - M9 Male angled connector, Contacts: 7, shielded, moulded on the cable, IP67, PUR, black, 8 x 0.14 mm², 2 m — 3D View

Scale drawing 79 1421 72 07 - M9 Male angled connector, Contacts: 7, shielded, moulded on the cable, IP67, PUR, black, 8 x 0.14 mm², 2 m — Scale drawing

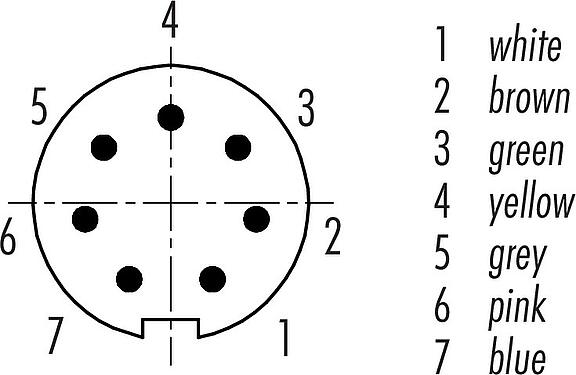

Contact arrangement (Plug-in side) 79 1421 72 07 - M9 Male angled connector, Contacts: 7, shielded, moulded on the cable, IP67, PUR, black, 8 x 0.14 mm², 2 m — Contact arrangement (Plug-in side)

Part no.	79 1421 72 07
Connector design	Male angled connector
Cable length	2 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version	Connector pin angled
Connector locking system	screw
Termination	moulded on the cable
Degree of protection	IP67
Cross-sectional area	0.14 mm² / AWG 26
Temperature range from/to	-25 °C / 70 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	93.50
Customs tariff number	85369010
Country of Origin	HU

Rated voltage	125 V
Rated impulse voltage	1500 V
Rated current	1.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	II
Insulating material group	III
EMC compliance	shielded
Shield connection	Shield on the threaded ring

Housing material	PUR
Contact body material	PBT (UL94 V-0)
Contact material	CuZn (brass)
Contact plating	Au (gold)
Locking material	CuZn (brass)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	6193f017-4621-475e-a20d-0945d4c07116

eCl@ss 11.1	27-06-03-11
ETIM 9.0	EC002638

Low Voltage Directive	2014/35/EU (EN 60204-1:2018;EN 60529:1991)
RoHS Directive	2011/65/EU (EN 50581:2012)

Structure of the cable
Cable diameter	5.4 mm
Cross section	8 x 0.14 mm²
Sheath material	PUR
Single-lead insulation	PVC
Single-lead structure	18 x 0.10 mm
Cable color	black
Electrical properties
Conductor resistance	148 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable	min. 7.5 x Ø
Bending radius, moving cable	min. 15 x Ø
Bending cycles	> 1 million
Permitted acceleration	max. 3 m/s²
Travel distance, horizontal	max. 5 m
Travel distance, vertical	max. 2 m
Thermal properties
Temperature range cable in move from/to	-5 °C / 80 °C
Temperature range cable fixed from/to	-25 °C / 80 °C
Other features
Halogen free	no

Report error on this page

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
