M9 Male panel mount connector, Contacts: 5, unshielded, solder, IP67

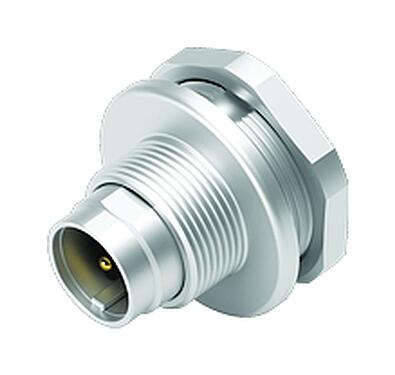

Illustration 09 0415 00 05 - M9 Male panel mount connector, Contacts: 5, unshielded, solder, IP67 — Illustration

3D View 09 0415 00 05 - M9 Male panel mount connector, Contacts: 5, unshielded, solder, IP67 — 3D View

Component part drawing 09 0415 00 05 - M9 Male panel mount connector, Contacts: 5, unshielded, solder, IP67 — Component part drawing

Scale drawing 09 0415 00 05 - M9 Male panel mount connector, Contacts: 5, unshielded, solder, IP67 — Scale drawing

Assembly instructions / Panel cut-out 09 0415 00 05 - M9 Male panel mount connector, Contacts: 5, unshielded, solder, IP67 — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) 09 0415 00 05 - M9 Male panel mount connector, Contacts: 5, unshielded, solder, IP67 — Contact arrangement (Plug-in side)

Part no.	09 0415 00 05
Connector design	Male panel mount connector
Version	Connector pin straight
Connector locking system	screw
Termination	solder
Degree of protection	IP67
Cross-sectional area	0.25 mm² / AWG 24
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	5.18
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	125 V
Rated impulse voltage	1500 V
Rated current	3,0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	II
Insulating material group	III
EMC compliance	unshielded

Housing material	CuZn (Brass nickel plated)
Contact body material	PA (UL94 V-0)
Contact material	CuZn (brass)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	2b3e2033-09e2-4cea-87b4-4db64d4d3f55

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569
