M9 Male panel mount connector, Contacts: 7, unshielded, solder, IP67

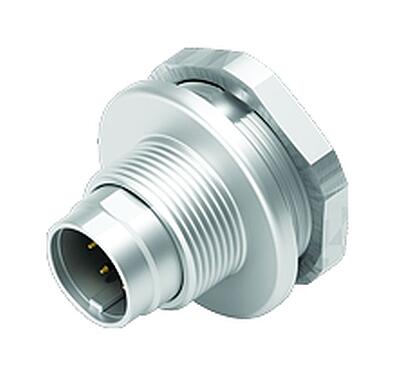

Illustration 09 0423 00 07 - M9 Male panel mount connector, Contacts: 7, unshielded, solder, IP67 — Illustration

3D View 09 0423 00 07 - M9 Male panel mount connector, Contacts: 7, unshielded, solder, IP67 — 3D View

Component part drawing 09 0423 00 07 - M9 Male panel mount connector, Contacts: 7, unshielded, solder, IP67 — Component part drawing

Scale drawing 09 0423 00 07 - M9 Male panel mount connector, Contacts: 7, unshielded, solder, IP67 — Scale drawing

Assembly instructions / Panel cut-out 09 0423 00 07 - M9 Male panel mount connector, Contacts: 7, unshielded, solder, IP67 — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) 09 0423 00 07 - M9 Male panel mount connector, Contacts: 7, unshielded, solder, IP67 — Contact arrangement (Plug-in side)

Part no.	09 0423 00 07
Connector design	Male panel mount connector
Version	Connector pin straight
Connector locking system	screw
Termination	solder
Degree of protection	IP67
Cross-sectional area	0.14 mm² / AWG 26
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	5.50
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	125 V
Rated impulse voltage	1500 V
Rated current	1.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	II
Insulating material group	III
EMC compliance	unshielded

Housing material	CuZn (Brass nickel plated)
Contact body material	PA (UL94 V-0)
Contact material	CuZn (brass)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	8f3c6167-bcc2-42ff-ae1d-682ef8a5db55

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569

Report error on this page

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
